Description
Part Number: VSR200
The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc.
FEATURES & SPECS
L.E.D INDICATOR
L.E.D illuminates when VSR is activated.
SEALED ELECTRONICS
Prevents dust and water ingress (IP66).
SURGE PROTECTION
Built-in protection guards vehicle against voltage spikes.
MANUAL OVERRIDE
Bypasses automatic settings allowing relay to engage below set voltages.

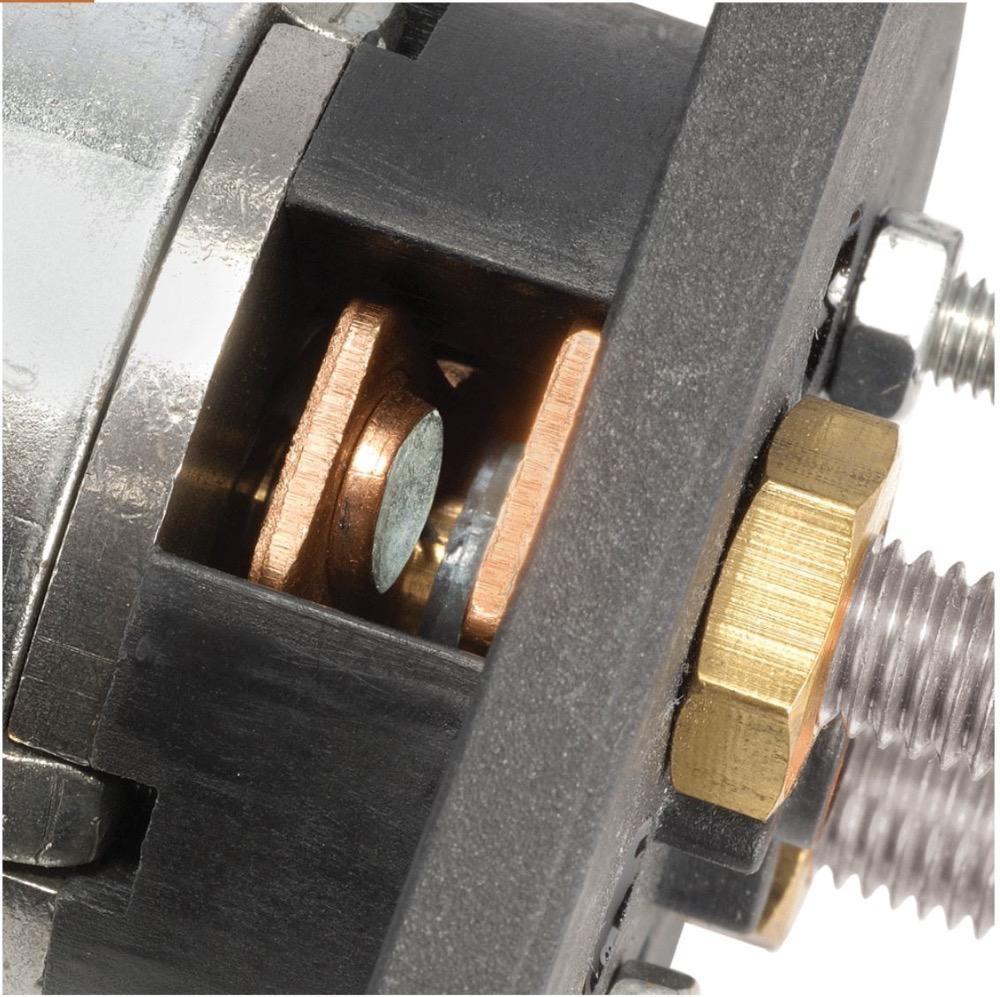

SILVER TIP CONTACTS
Provide exceptional current transfer.
SPECIFICATIONS
|
|---|
| PART NO. | VSR100 | VSR200 |
| VOLTAGE | 12V | 12V |
| CHARGING CURRENT | 100A Continuous, | 200A Continuous, |
| 200A Peak | 400A Peak |
| CUT-IN VOLTAGE | 13.4V | 13.4V |
| CUT-OUT VOLTAGE | 12.8V | 12.8V |
| CUT-OUT DELAY | 8 seconds | 8 seconds |
| MINIMUM OPERATING VOLTAGE | 10V | 10V |
| CHARGE TYPE | Parallel | Parallel |
| CONTROL | MCU | MCU |
| MOUNTING | Surface/firewall | Surface/firewall |
| CURRENT DRAW | Charging 550mA | Charging 680mA |
| (standby 10mA) | (standby 10mA) |
| SURGE PROTECTION | Built-in | Built-in |
| INGRESS PROTECTION | IP66 | IP66 |
| OVERRIDE | Requires min. 10V | Requires min. 10V |
| RECOMMENDED FUSE | 150A | 250A |
| MINIMUM CABLE SIZE | 14mm2 (6 B&S) | 32mm2 (2 B&S) |
| APPROVALS | EMC | EMC |
