Hella

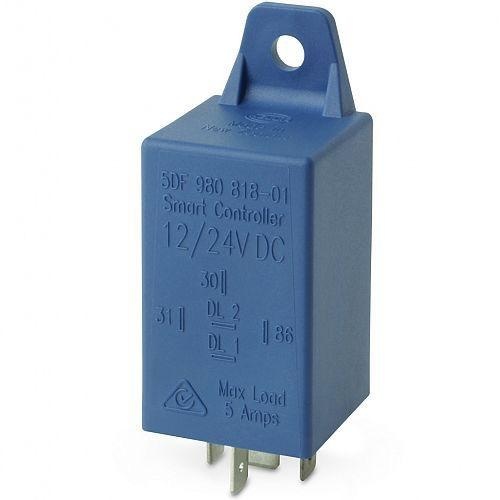

Safety DayLights Smart Controller - Standard

Part Number: 3091

Currently Out of Stock

Description

Part Number: 3091

This Smart Controller is designed to simplify the installation of HELLA’s LED Safety DayLights™ range by eliminating the need to wire the lamp, or changeover relay to ignition terminal 15. The Safety DayLights™ Smart Controller can be wired directly to the positive terminal of the battery, which saves the difficult and often time consuming task of finding the ignition feed. The Smart Controller monitors the voltage supply from the battery and will automatically switch the Safety DayLights™ on when the engine is started, and automatically switch them off when the headlamps are activated, or the engine is turned off.

*Advanced version with vibration monitor for installation in vehicles with fuel saving alternators.

Other Details:

Voltage: Multivolt, suitable for 12 and 24 volt DC systems.
Maximum Continuous Load: 20W
To Suit: HELLA LED Safety DayLights™ range.

Features a Safety DayLights™ OFF delay of approximately 10 seconds.

WIRING SPECIFICATIONS

Terminal
Number
Connect to
30 Battery (+)
31 Earth return (-)
86 Front position or headlamps (+)
DL1 & DL2 Safety DayLights™ (+)
