Description
Part Number: 2395-12V

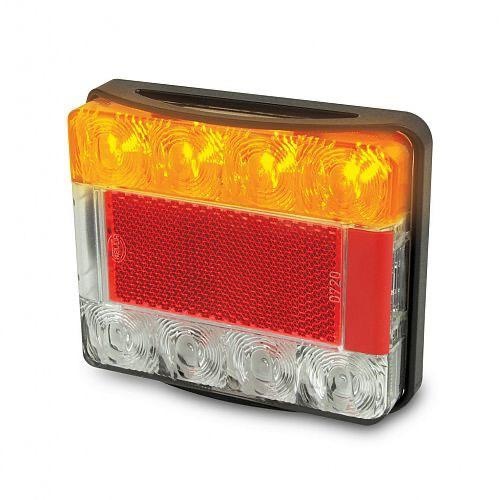

LED stop, rear position and rear direction indicator lamp with 18cm² red retro-reflector and licence plate function. Modern clear lens design with black mounting base. Low power consumption and long life equates to economical running costs. Convenient mounting base with multiple fixing points allow easy fitment to most trailers/vehicles. The lamp is fully sealed against dust and moisture ingress. Optic appears clear until illuminated.
Other Details:
| 2395-12V |
2VB 980 720-601 |
| Mounting |
Surface mount with choice of mounting holes. Lamp clips into mounting base.
Suitable for horizontal or vertical mounting. |
| Voltage |
12V DC |
| Power Consumption |
Stop: 2W
Rear position/Licence plate: 1W
Rear direction indicator: 2W |
| Protection |
Reverse polarity and transient spike circuit protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning) |
| Cable Length |
Pre-wired with 0.5m of sheathed multi-core cable. |
| Spare Parts |
9.2394.08 Mounting base
9.2394.09 Mounting spacer (not included) |
| Lens Material |
Acrylic |
| Compliance |
ADR 6/00: Cat 2a ADR 47/00 ADR 48/00 ADR 49/00 E24 5860 ECE R6/01
ECE R7/02 ECE R4/00 ECE R3/02 RCM Compliant |
