Description
Part Number: 1396

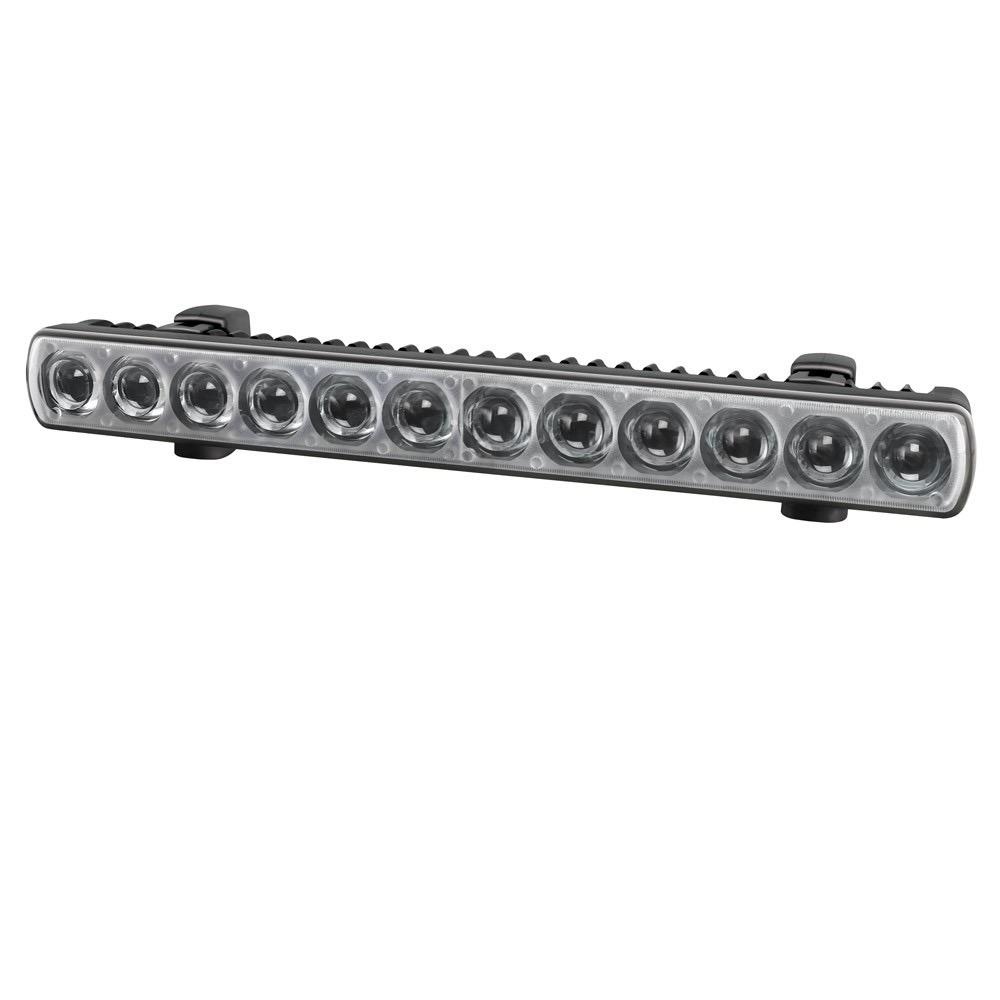

This innovative, light weight HELLA LED Light Bar 350 is the first such lamp with a body manufactured entirely from non corrosive, thermally conductive high performance plastics. This aerodynamic powerhouse features 12 durable high performance automotive grade LEDs and a maximum luminous intensity of 145,000 candela with a mere power consumption of only 25 watts.

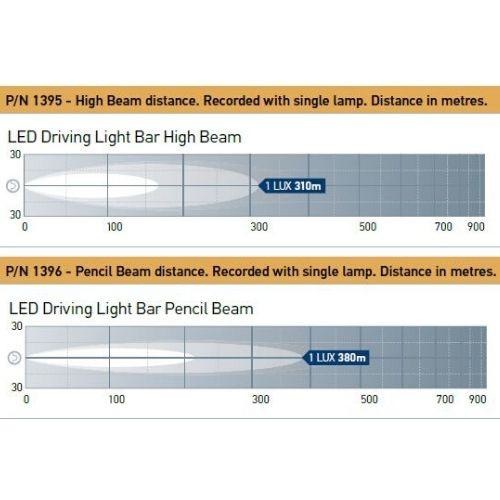

The dust and waterproof Light Bar comes in two different beam patterns – High Beam (Ref 20) and Pencil Beam (Ref 30).
The hermetically sealed and submersible Light Bar features a Multivolt™ circuit for optimum brightness at input voltages from 9 to 33 volts, is fully road legal with ECE approval and comes with a comprehensive 5 year warranty.
1395
1396 | 1FJ 958 040-021 – Ref. 20, HIGH BEAM
1FJ 958 040-061 – Ref. 30, PENCIL BEAM |
|---|
| Mounting | Upright or pendant. |
| Voltage | Multivolt for optimum brightness at input voltages from 9 to 33 volts. |
Power Consumption
| 25W |
Maximum
Luminous Intensity | 1395: 96,000 candela
1396: 145,000 candela |
| Protection | Reverse polarity and transient spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning) |
| Cable Length | Pre-wired with 2.5m of tinned multi-core cable. |
| Compliance | E4 2909 R10/04 RCM Compliant
1395: E24 0008 R112/01 Ref. 20
1396: E24 0009 R112/01 Ref. 30
|
| Contents | 1 x LED Light Bar 350
2 x Plastic mounting brackets
1 x Instruction booklet |
