Description
Part Number: 95901140

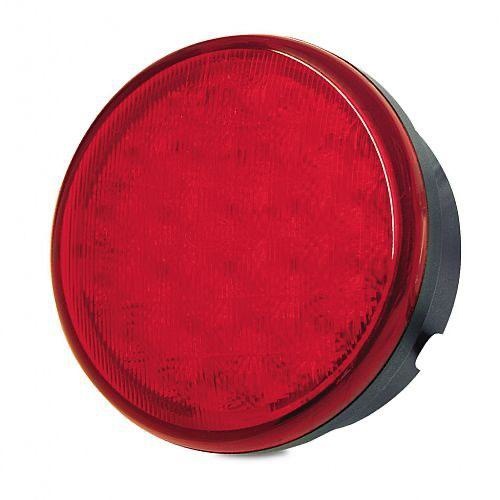

83mm diameter round LED Signal Lamps with single bolt mount for emergency vehicles. The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.
Other Details:
Mounting |
Single bolt 1/4" stainless UNC thread. Nut and washer supplied. |
Voltage |
Multivolt for optimum brightness at input voltages from 9 to 33 volts DC. |
Power Consumption |
6W continuous (less in flashing modes). |
Protection |
Reverse polarity and voltage spike protection. IP 6K7 (Protection against dust and temporary water immersion) IP 6K9K (Protection against dust and high-pressure/steam jet cleaning) |
Cable Length |
Pre-wired with 2.5m of sheathed multi-core cable. |
Compliance |
EMC e4 03 1681 ECE-R10 |
Flashing Options
|
Steady state |
Lamp operates as a continuous ON signal |
Independent flash |
Lamp operates from an external flashing system |
Flash state |
Lamp operates in the flash mode preselected by the user |
Blitz state |
Lamp operates in a burst of quad flashes (pattern 4) |
The blitz mode overrides the other operating modes and is triggered by switching the blue cable to negative (-). |
Lamps shown illuminated (right).
