Description

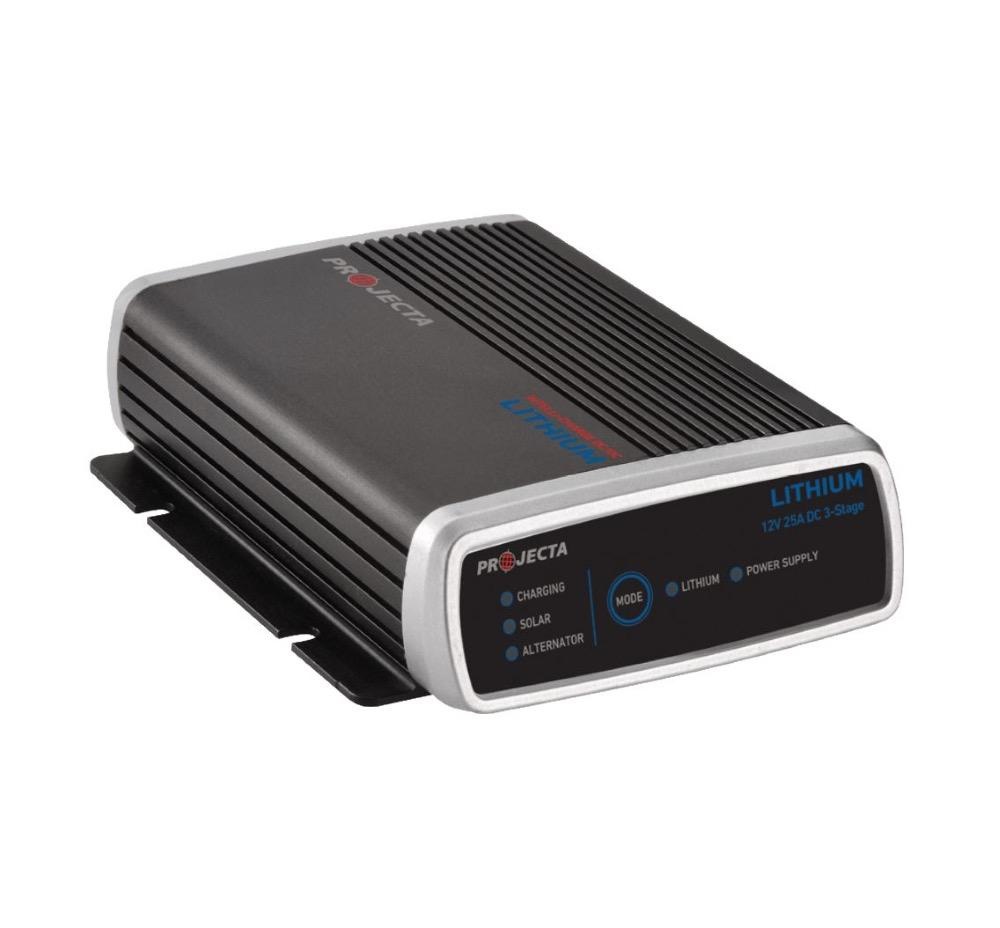

Part Number: IDC25L
An advanced DC/solar battery charger engineered for todays sophisticated lithium iron phosphate batteries.
FEATURES & SPECS
LITHIUM CHARGING TECHNOLOGY
Engineered for use with todays advanced lithium battery technology.

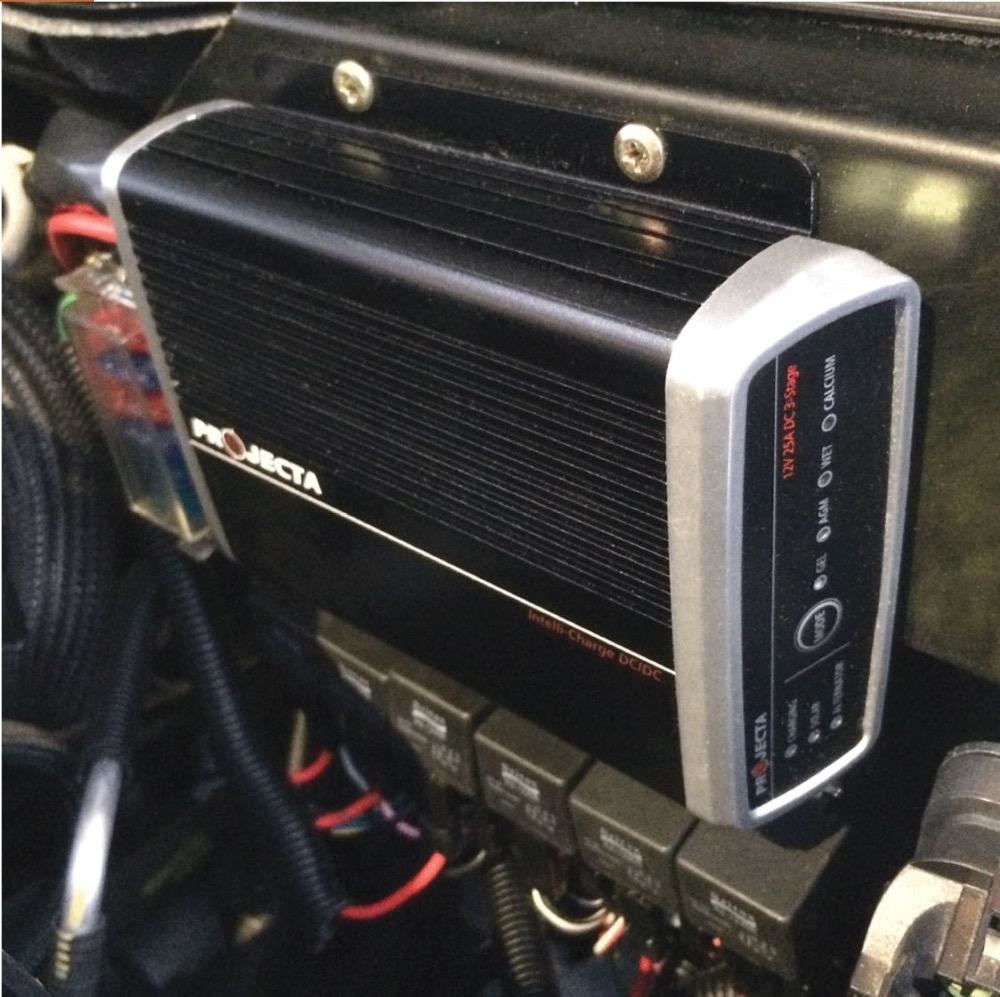

ENGINE BAY INSTALLATION
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C.
DUAL CHARGING MODES
Engineered to work with both smart and conventional alternators.
DUAL INPUT OPERATION
Simultaneous dual battery charging from both solar and alternator inputs.
TOTAL SAFEGUARD PROTECTION
Over temperature, reverse connection, over/under and spark free protection.
SPECIFICATIONS
|
|---|
| PART NO. | IDC25L |
| CHARGE TYPE | 5 Stage |
| ALTERNATOR INPUT VOLTAGE | 9-32Vdc |
| MAX SOLAR INPUT | 28Vdc, 360W |
| OUTPUT CURRENT | Input 9-11Vdc 20A, Input 11-32Vdc 25A |
| BACK DRAIN ON AUX BATTERY | 9.5-10.5mA |
| CHARGING PROFILE | 1st Soft Start: 1.25A
2nd Soft Start: 6.25A
Bulk Charge Current: 25A
Absorption Voltage: 14.5V
Float Voltage: 13.5V |
| BATTERY CAPACITY | 50-250Ah |
| BATTERIES SUPPORTED | Lithium iron phosphate |
| SMART ALTERNATOR | 12V Vehicle
Turn On: 12.2-20V
Turn Off: <11.9V
| 24V Vehicle
Turn On: 24.4-32V
Turn Off: <24V
|
| CONVENTIONAL ALTERNATOR | 12V Vehicle
Turn On: 13.4-20V
Turn Off: <12.8V
| 24V Vehicle
Turn On: 26.8-32V
Turn Off: <25.6V
|
| OPERATING TEMPERATURE | -10C° to +80C° |
