Description
Part Number: 1GJ011872611

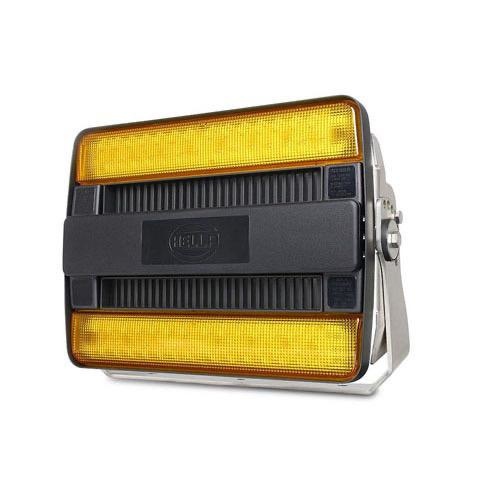

A quantum technology leap for commercial vessels, HypaLUME is Hella marine’s most powerful floodlight.
The Amber 24/48V DC HypaLUME has been designed for applications where high output lighting in extreme environments is required. Using light with a warmer colour temperature can provide additional improvements in visibility for areas of high dust, fog and/or snowy conditions. The lamp produces a net output of 19,000 lumens at a voltage input range of 22-52V DC whilst consuming less than 260W.
Comprehensive sealing and anti-corrosion measures have been taken to ensure this lamp withstands the toughest conditions. The premium aluminium housing is corrosion resistant with a non-stick and easy to clean surface coating. Heavy duty polycarbonate lens offers unbeatable toughness against impacts and vibration. The LEDs have a colour temperature of 2500K to produce significantly reduced glare compared to traditional white flood lighting.
The LED driver electronics ensure light output remains stable over a wide range of voltage variations. The HypaLUME is also protected from over voltage and short circuit faults. The HypaLUME is designed to operate over a temperature range from -40°C to +50°C.
SPECIFICATIONS
|
|---|
| Mounting | Upright or pendant |
| Operating Voltage | Optimum brightness at input voltages from 22 to 52 volts |
| Power Consumption | 260 max. (10A @ 24V DC) |
| Actual Light Output | 19,000 lumen |
| Operating Temperature | -40°C to +50°C |
| LED Colour Temperature | 2500 K |
| Degree of Protection | IP 6K7 (Protection against dust and temporary water immersion) |
| Degree of Protection | IP 6K9K (Protection against dust and high-pressure/steam jet cleaning) |
| Degree of Protection | Reverse polarity, transient spike and over voltage protection and advanced thermal management |
| Cable Length | Supplied with 1.8m of easy plug-in sheathed cable |
| Connection | 4 Pin Deutsch plug |
| Lens Material | PC |
| Approvals | CE, C-tick, FCC, ISO 13766, ECE R10 |
