Description
Part Number: 6010
Mounting: Integrated universal mounting bracket for upright, pendant or surface mounting. Voltage: 12-24V DC (P/N 6011 - 12-48V DC) Current Draw:
P/N 6008 0.1A - 90db,
P/N 6009 0.2A - 97dB,
P/N 6010 0.3A - 107dB,
P/N 6011 0.2A - 97dB Frequency: 60 signals per minute (± 20%). Sound Level:
P/N 6008 90 ± 4dB @ 1.2m,
P/N 6009 97 ± 4dB @ 1.2m,
P/N 6010 107 ± 4dB @ 1.2m,
P/N 6011 97 ± 4dB @ 1.2m Temperature: Operating range -40°C to 85°C. Protection: IP 66 (Protection against dust and high pressure washing) Spare Parts:
9.6008.05 Rubber boot for AMP connection,
9.6008.06 Wiring loom for AMP connection (2metres),
6041 Activating Switch Compliance: SAE J998

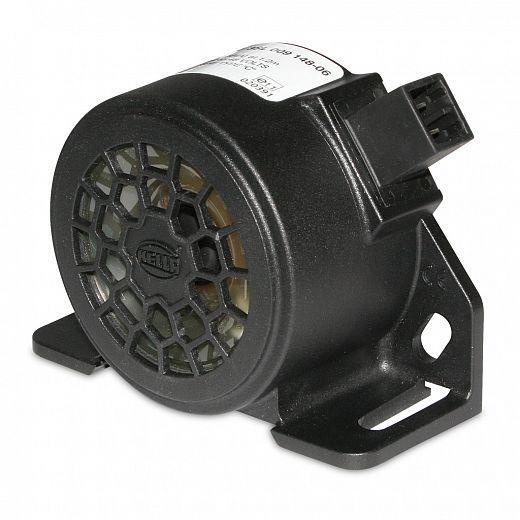

Heavy Duty Reversing Alarm with integral AMP connection and fixed sound pressure levels between 90 and 107dB @ 1.2 metres. Epoxy encapsulated circuit boards offer protection against humidity, dirt and vibration.
Specifications:
P/N 6008 0.1A - 90db,
P/N 6009 0.2A - 97dB,
P/N 6010 0.3A - 107dB,
P/N 6011 0.2A - 97dB
P/N 6008 90 ± 4dB @ 1.2m,
P/N 6009 97 ± 4dB @ 1.2m,
P/N 6010 107 ± 4dB @ 1.2m,
P/N 6011 97 ± 4dB @ 1.2m
9.6008.05 Rubber boot for AMP connection,
9.6008.06 Wiring loom for AMP connection (2metres),
6041 Activating Switch
