Description
Part Number: DBC150
An advanced electronic isolator that suits fitment to larger 4WD vehicles, including Landcruisers, Patrols or similar, that will run powerful accessories such as fridges, lights and inverters.
FEATURES & SPECS
PRIORITY CHARGING
Ensures main battery is charged before connecting to auxiliary.

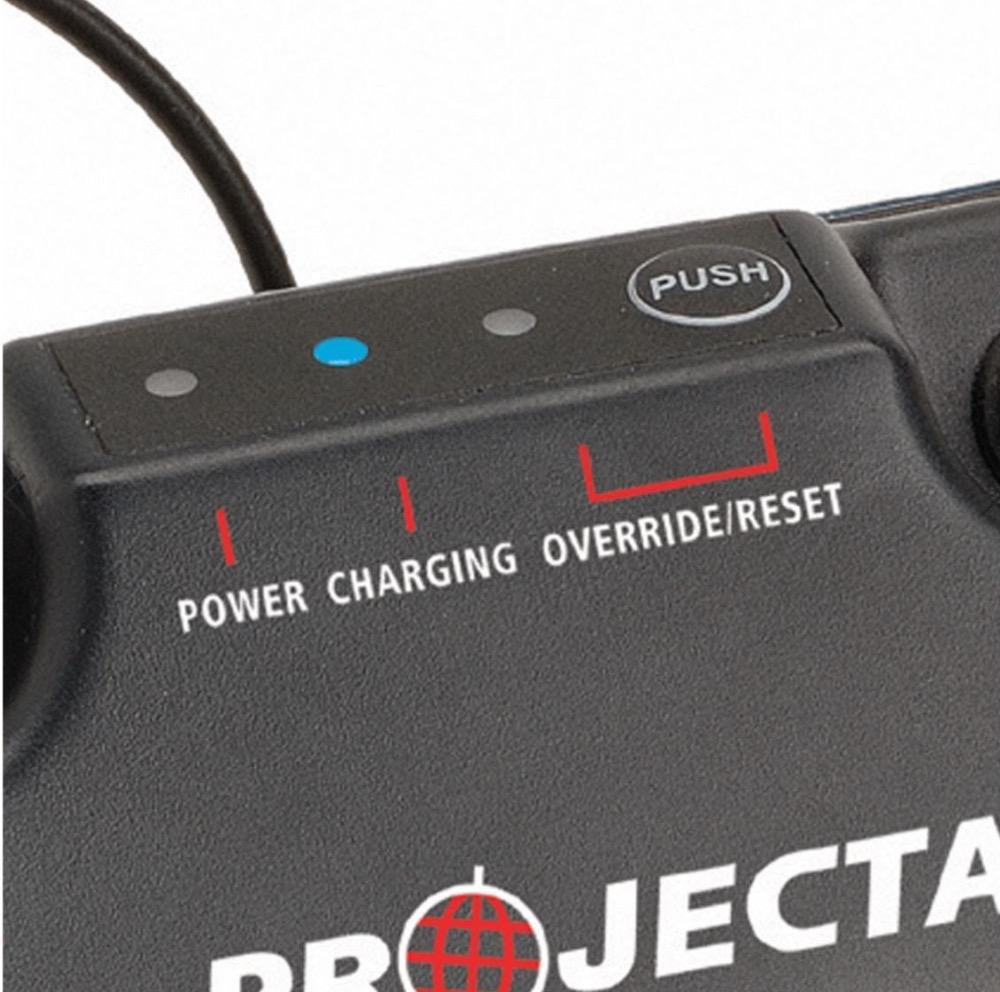

L.E.D INDICATORS
L.E.D illuminates to highlight charge status.
MANUAL OVERRIDE
Allows batteries to be manually paralleled for jumpstarting.
VEHICLE PROTECTION
Built-in over current and surge protection.
PERMANENT FIXTURE
Supplied bracket and screws for mounting unit.
SPECIFICATIONS
|
---|
PART NO. | DBC150 |
VOLTAGE | 12V |
CHARGING CURRENT | 125A Continuous, 150A Peak |
CUT-IN VOLTAGE | 13.4V |
CUT-OUT VOLTAGE | 12.8V |
CUT-OUT DELAY | 60 seconds |
MINIMUM OPERATING VOLTAGE | One battery above 7.5V |
CHARGE TYPE | Parallel |
CONTROL | MCU |
MOUNTING | Surface/firewall battery side |
CURRENT DRAW | Charging 500mA (standby 30mA) |
SURGE PROTECTION | Built-in |
APPROVALS | EMC |
