Description
Part Number: 2383-DT24VCS

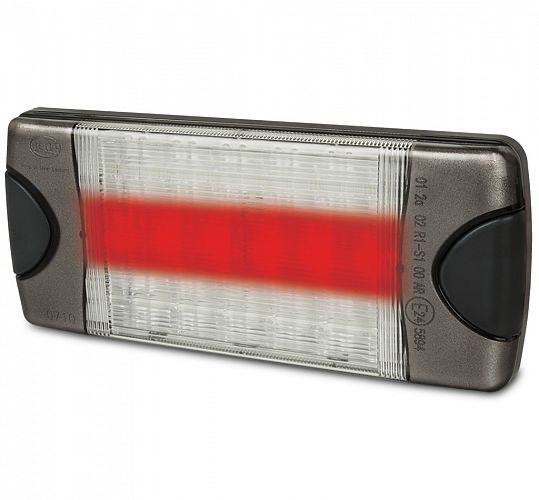

DuraLED combination lamp featuring modern clear lens design. Low power consumption and long life equates to economical running costs. Ideal for 24V commercial vehicles. Optic appears clear until illuminated.
Other Details:
| 2383-24VCS |
2SK 980 613-511 – Incorporates HCS technology |
| 2383-DT24VCS |
2SK 980 602-511 – Incorporates HCS technology |
| Mounting |
Two hole surface mount with mounting bushes supplied.
Suitable for horizontal mounting. |
| Voltage |
24V DC |
| Power Consumption |
Stop : 3W
Rear position: 1W
Night (2383-DT24VCS only): 1W
Rear direction indicator: 3W
Reverse: 3W |
| Protection |
Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion) |
| Cable Length |
Pre-wired with 2.5m of sheathed multi-core cable (except DT versions). |
| Accessory |
4963-P 6 pole DT plug, wedge and 6 contacts. |
| Lens Material |
Nylon (PA12) |
| Compliance |
E24 5894 ECE R6/01 ECE R7/02 ECE R23/00
ISO 13207-1 ECE R10 RCM Compliant |
