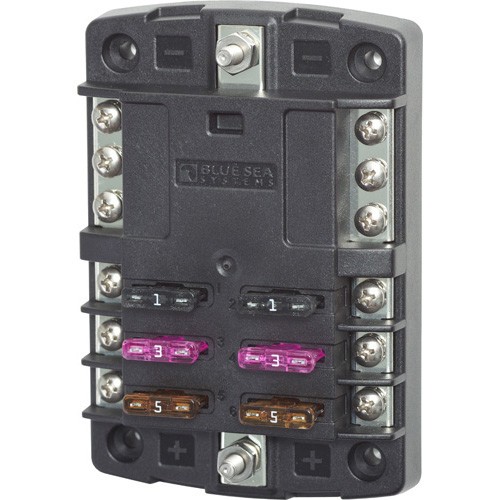

Description
Part Number: 5030
Consolidates branch circuits and in-line fuses Positive distribution bus with #10-32 stud Can be used for 24-hour circuits Models available with or without a cover Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Accepts ATO and ATC fast acting blade fuses Fuses sold separately
Specifications:
Circuits: 6
Maximum Amperage: 100A per block, 30A per circuit
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Negative: Bus #10-32 Stud
Positive Bus: #10-32 Stud
Recommended Torque: 24 in-lb (2.71 N∑m)
Screw Terminal Torque: 15 in-lb (1.69 Nm)
Screw Terminal Type: #8-32 Screws with captive star lock washer
Weight: 0.47lb (0.21 kg)
