Description

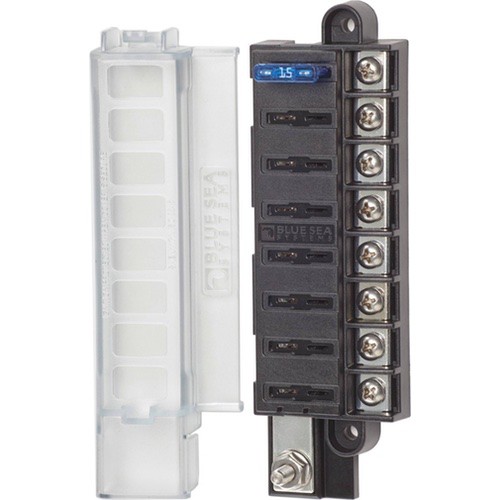

Part Number: 5046
Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint. Ignition protected when cover is secure ñmeets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Single side design allows wire entry from one side to minimize footprint Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Includes 8 write-on circuit labels Fuses sold separately
Specifications:
Circuits: 8
Maximum Amperage: 100A per block 30A per circuit
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Terminal Stud Torque: 24 in-lb (2.71 Nm)
Screw Terminal Torque: 15 in-lb (1.69 Nm) 18 in-lb (2.03 Nm)
Screw Terminal Type: #8-32 Scews with captive star lock washer
Terminal Stud Size: #10-32
