Description

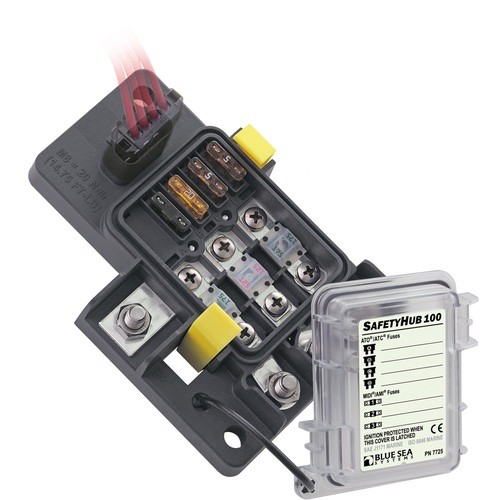

Part Number: 7725
Three 30A_200A MIDI/AMI fuses [sold separately] ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers Four 1A_20A ATOÆ/ATCÆ fuses [sold separately] ideal for circuits including bilge pumps, alarms, and clock memory Sealed cover protects fuses from the harsh marine environment: IP66 rating-protected against powerful water jets Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats
Specifications:
Circuits: 7
Stud Size: M8 x 1.25
Operating Voltage: 12V 24V 32V
Amperage Maximum Operating - combined: 280A
Recommended Ring Terminal: M8 (5/16")
Screw Torque, 8-32: 18in-lb (2.03 Nm)
Screw Torque, M5: 27in-lb (3.05 Nm)
Stud Torque: 180 in-lb (20.34 Nm)
Weight: 3.20lb (1.45 kg)
