Blue Sea Systems

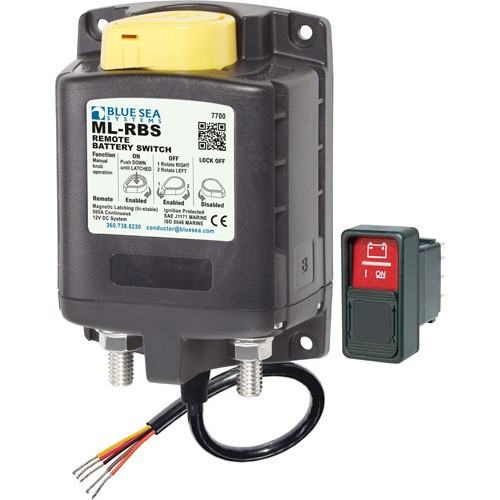

ML-RBS Remote Battery Switch with Manual Control - 12V DC 500A

Part Number: 7700

Currently Out of Stock

Description

Part Number: 7700

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3_ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7_ 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

    Specifications:
    Control Circuit Connection: Tinned Wire
    Nominal Voltage: 12V DC
    Manual Control: Yes
    Coil Function: Bi-Stable
    Mounting: #10
    Amperage Operating Current: 0mA
    Amperage Operating Current when changing state: <7A (40 ms)
    Terminal Stud Torque: 140 in-lb (15.82 Nm)
    Control Circuit Voltage: 10.1 to 16.5V DC
    Continuous Rating: 500A
    Intermittent Rating: 700A (5 min)
    Cranking Rating 30 sec: 1450A DC
    Minimum Operating Temperature: -10∞ C
    Maximum Operating Temperature: 50∞ C
    Cable Size to Meet Ratings: 2x (4/0)
    Live Current Switching: 300A @ 12V DC
    Master Control Switch Capability: No
    Mechanical Endurance: 100,000 Cycles
    Terminal Ring Diameter Clearance: 1.18in (29.97 mm)
    Terminal Stud Length: 0.875in (22.23 mm)
    Terminal Stud Size: 3/8" - 16 (M10)
    Weight: 1.75lb (0.79 kg)
