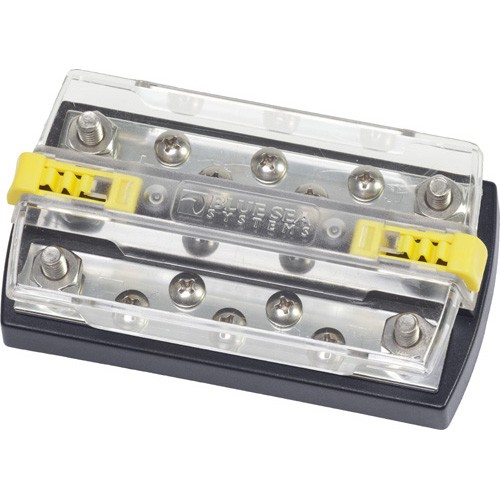

Blue Sea Systems DualBus Plus 150A BusBar - 5/6" -18 Stud 5 Gang
Blue Sea Systems DualBus Plus 150A BusBar - 5/6" -18 Stud 5 Gang

Blue Sea Systems

DualBus Plus 150A BusBar - 5/6" -18 Stud 5 Gang

Part Number: 2723

Currently Out of Stock

Description

Part Number: 2723

  • Combines negative and positive buses on one block
  • Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements

    Specifications:
    Maximum Voltage: 300V AC 48V DC
    Number of Screw Terminals: 5 per bus
    Number of Terminal Studs: 2 per bus
    Terminal Type #10-32 Screw 5/16" Stud
    Continuous Rating: 130A AC 150A DC
    Base Material: Reinforced Polycarbonate
    Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
    Cover Material: Clear Polycarbonate
    Mounting Screw: #10 (M5)
    Weight: 0.61lb (0.28 kg)
