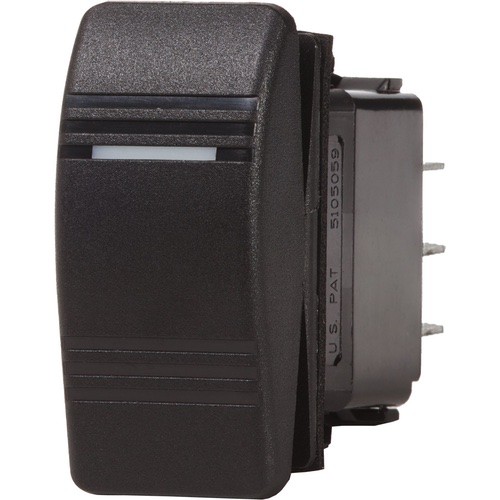

Description
Specifications:
Action: (Momentary ON)-OFF-ON
Pole / Throw: DPDT
Actuator Color: Black - Contura III
Common Applications: combining nav lights or anchor light with independent bulbs
Maximum Amperage: 20A @ 12V 15A @ 24V
Amperage Operating Current: 18mA (LED)
Minimum Operating Temperature: -40∞ C
Maximum Operating Temperature: 85∞ C
Actuator Position to Light LED: ON
Embedded LEDs: 1
Lighting: LED rated 100,000 hours 1/2 half
Seals: Internal and external gasket panel seal
Weight: 0.09lb (0.04 kg)
