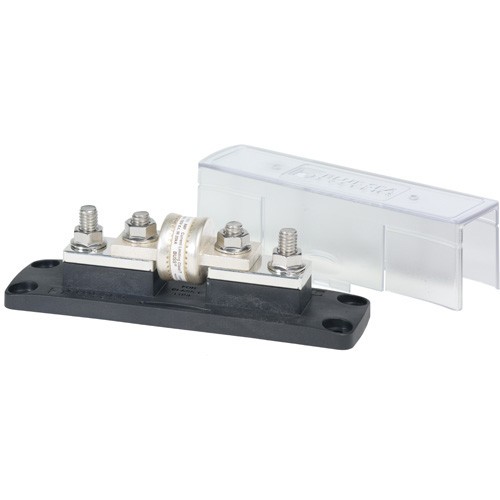

Blue Sea Systems Class T Fuse Block with Insulating Cover  - 225 to 400A
Blue Sea Systems Class T Fuse Block with Insulating Cover  - 225 to 400A

Blue Sea Systems

Class T Fuse Block with Insulating Cover - 225 to 400A

Part Number: 5502

Currently Out of Stock

Description

Part Number: 5502

  • The fuse system recommended by most inverter manufacturers for high speed response to short circuits
  • Clear insulating cover, satisfies ABYC/USCG requirements
  • For use on systems up to 160 Volts DC
  • Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
  • Large heat dissipating tin-plated copper mounting blocks
  • Fuse sold separately

    Specifications:
    Ignition Protected: No
    Maximum Amperage: 400A
    Maximum Voltage: 160V DC
    Fuse Mounting Blocks: Tin-Plated Copper
    Maximum Cable Size: 4/0 AWG
    Maximum Torque: 190 in-lb (21.47 Nm)
    Mounting Holes: Accept 1/4 (M6) Screw
    Terminal Stud Size: 3/8" - 16 (M10)
    Weight: 1.10lb (0.5 kg)
