Description
Part Number: DT830B
A convenient and reliable entry level multimeter with simple rotary switch to quickly select the function and range to be measured.
FEATURES & SPECS:

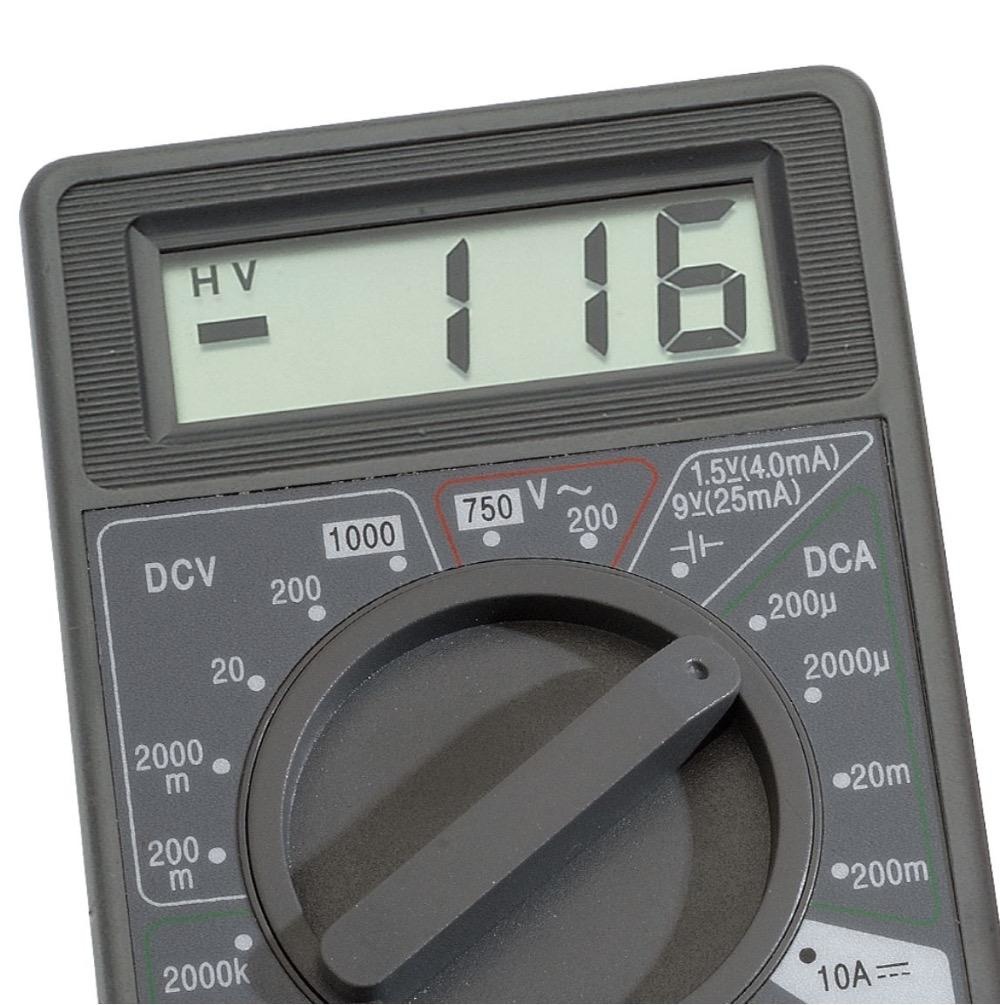

LCD SCREEN
Large and easy to read data screen.

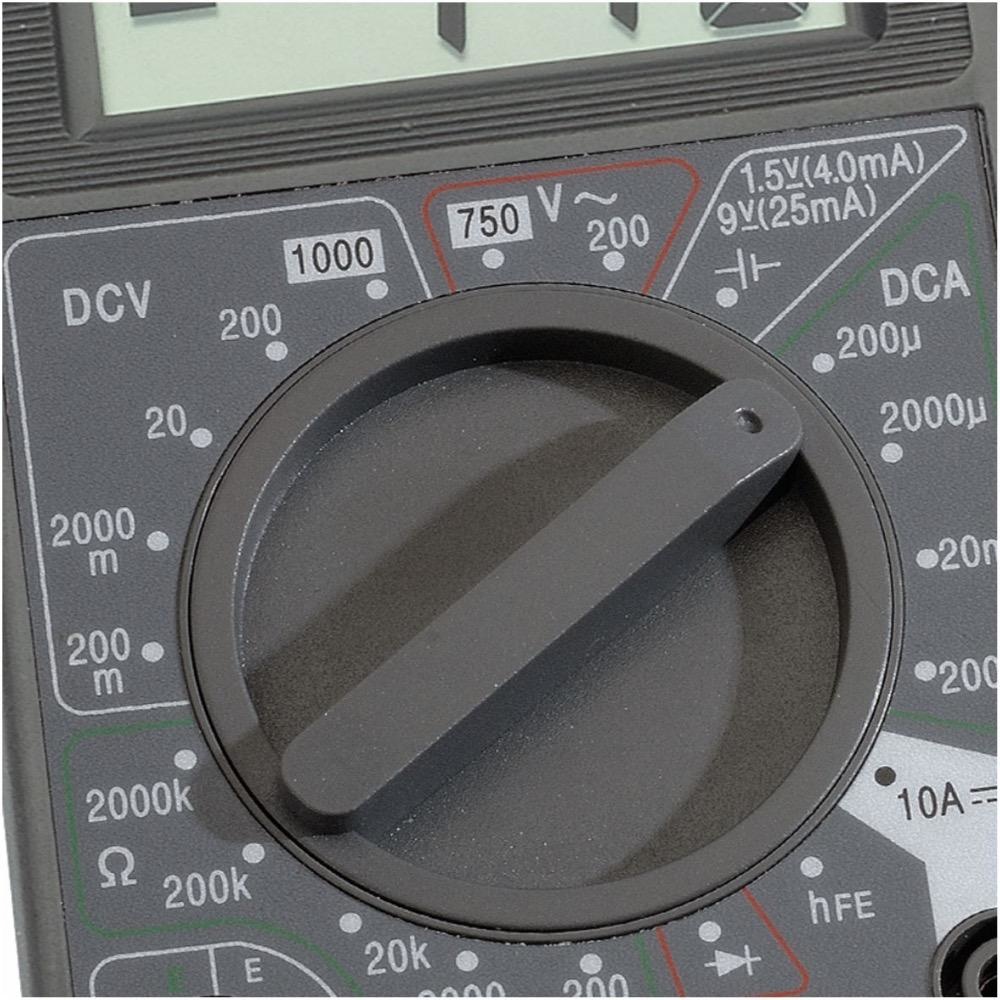

PROGRAM SELECTOR
Quick and easy program selection via turn dial.
TRANSISTOR CHECK
Convenient transistor test, displays hFE measurement.
SPECIFICATIONS
|
---|
PART NO. | DT830B |
POLARITY | Auto indication (-) |
VOLTAGE | DCV: 200mV, 2000mV, 20V, 200V & 1000V ACV: 200V & 750V (45–450Hz) |
CURRENT | DCA: 200μA, 2000μA, 20mA, 2000mA & 10A |
RESISTANCE | 200 Ohm, 2000 Ohm, 20k Ohm, |
200k Ohm & 2000k Ohm |
DRY CELL BATTERY CHECK | 1.5V (AAA, AA, C & D) & 9V |
DIODE TEST | 1mA current for forward Vdrop |
TRANSISTOR TEST | hFE (0–1000) @ 3.2Vce |
ACCURACY | < ± 1.0% full scale reading |
BATTERY | 9V dry cell |
INTERNAL FUSE | M205 (F500mA) |
LOW BATTERY WARNING | 7.5V |
SIZE | 126mm x 69mm x 24mm |
WEIGHT | 115g |
REPLACEMENT PARTS:DT830BTL Battery test leads
