Description

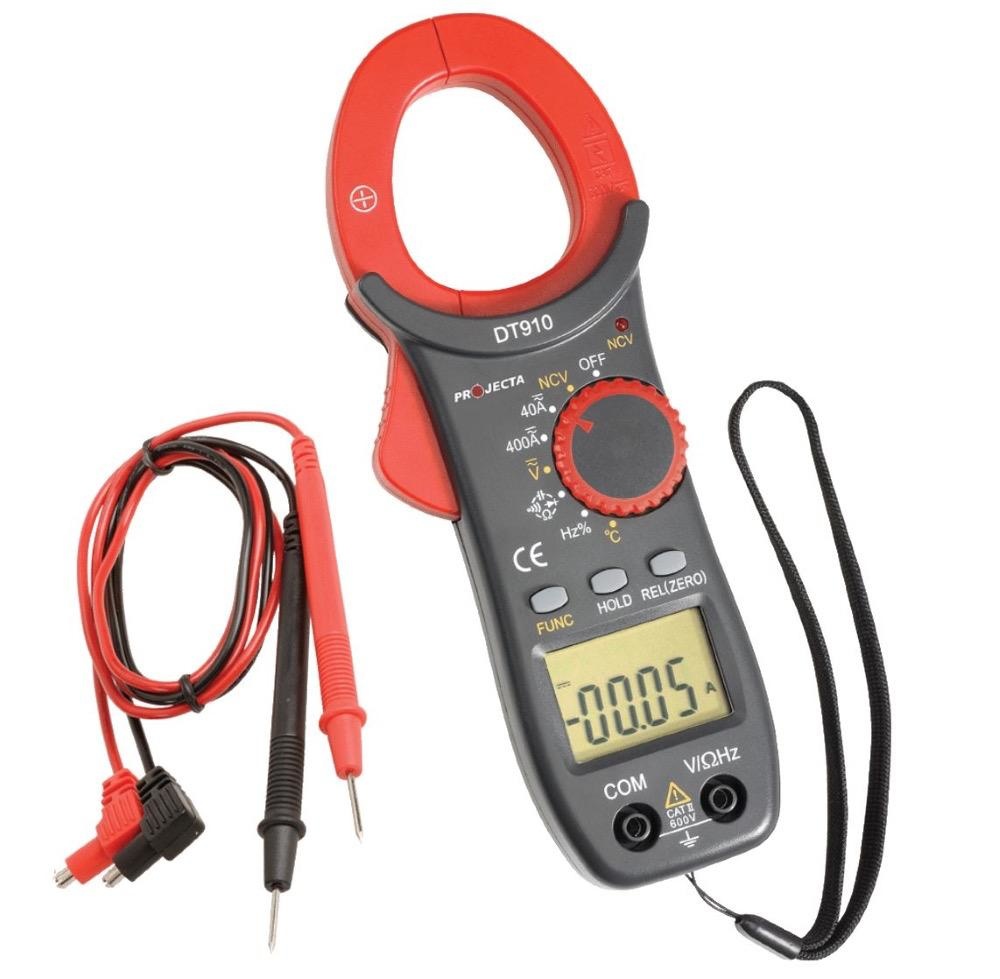

Part Number: DT910
A high quality tester allowing quick and simple current measurement without having to interfere with the test circuit.
FEATURES & SPECS:
CURRENT MEASUREMENT
Test AC/DC current up to 400 Amps without interfering with test circuit. Test wire up to 38mm in diameter.
MULTI-TEST
Test everything from DC voltage and frequency, resistance and continuity along with the ability to test diodes and temperature.

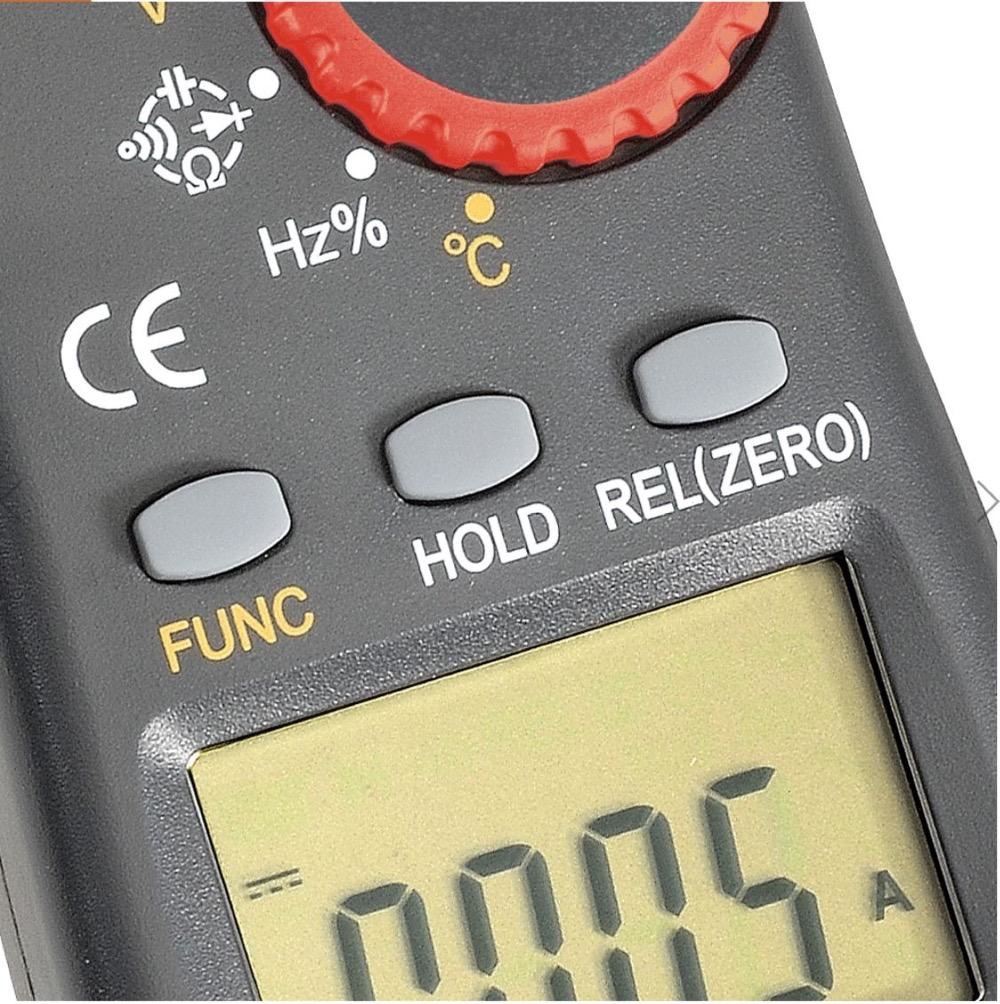

DATA HOLD FUNCTION
Freeze on screen data so you don’t lose the recording.

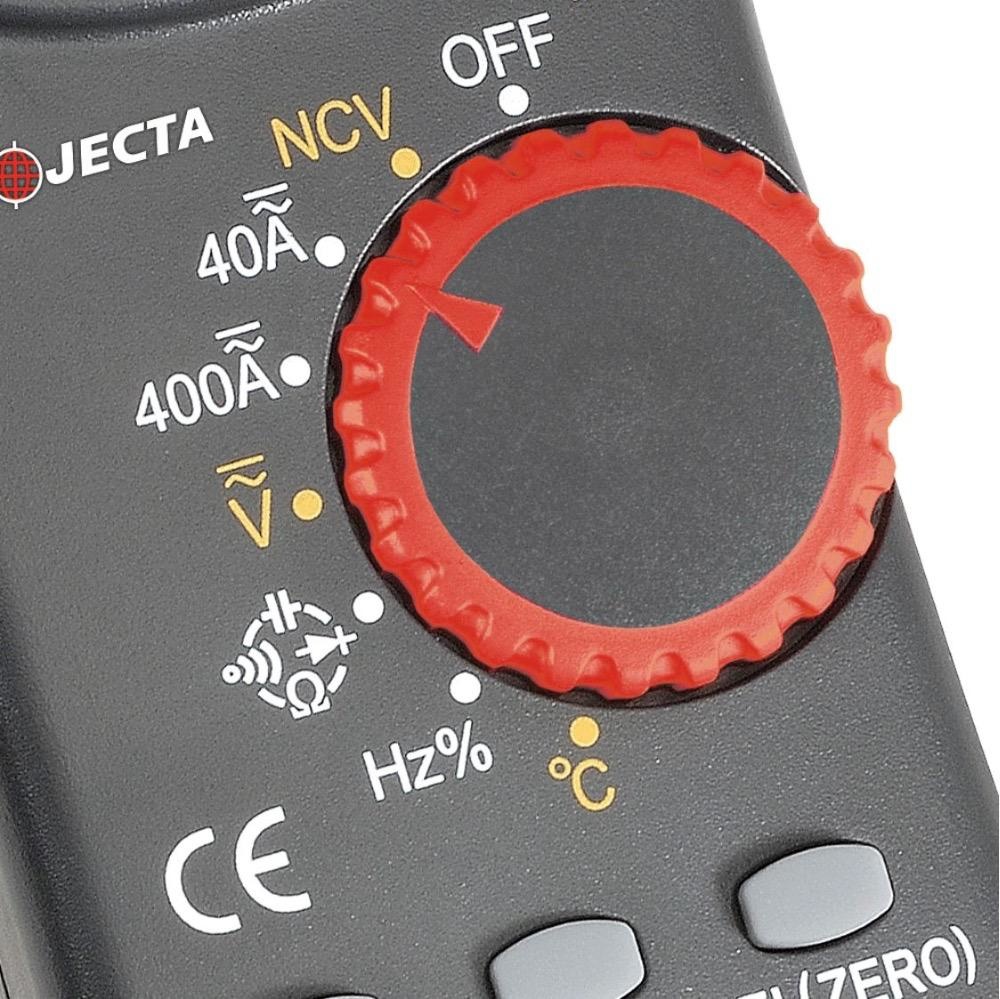

INTUITIVE JOG DIAL
Familiar symbols for popular scales and units of measurement.
NON-CONTACT VOLTAGE DETECTOR
Safely measure AC live voltage without even touching the circuit.
Supplied with protective storage case
SPECIFICATIONS
|
---|
PART NO. | DT910 |
RANGE | Auto scale |
POLARITY | Auto indication (-) |
VOLTAGE | DCV: 600V |
ACV: 600V |
CURRENT | DCA: 400V |
ACA: 400V |
MAXIMUM CONDUCTOR SIZE | Cable 38mm diameter |
Bus bar 41mm x 30mm |
RESISTANCE | 0–40 MOhms |
CONTINUITY | Buzzer |
DIODE TEST | Screen display forward voltage drop |
FREQUENCY | 0–1 MHz |
DUTY CYCLE | 1–99% |
ACCURACY | 1-3% full scale reading |
BATTERY | 1.5V dry cell (AAA x 2) |
LOW BATTERY WARNING | 2.3V |
INSULATION | CAT II |
SIZE | 186mm x 75mm x 28mm |
WEIGHT | 180g |
Supplied with protective storage case
