Description

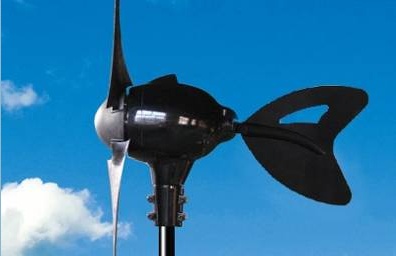

AWS Marine Grade Wind Turbines are smaller turbines for boats, caravans and other applications.
AWS Marine Grade Wind Turbines are super quiet, lightweight and marine-grade with carbon-fibre composite blades. Vibration dampener ensures no sound transfers into the mast.
The AWS 2000 controller is contained inside the turbine.

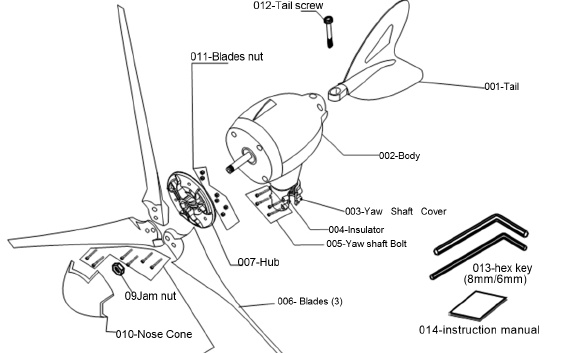

DIY assembly in less than 15 minutes.
Specifications:
Wind Turbine Type:Horizontal axis, up-wind
Rotor Diameter: 1776mm (69.9”)
Weight: 18kg
Mount Diameter: 48.6mm
Number of Blades: 3
Blade Material: Carbon fibre
Blade Mass (Per Piece): 532g
Body Material: Aluminium diecast
Product finish: Teflon-based paint
Generator:Synchronous-type, three phase power generator with neodymium iron boron magnets
Controller: Built-in
Yaw Control: Free yaw (360 degrees)
Over Wind Control: Stall control
Start-Up Wind Speed: 3m/s (11KPH, 6.7MPH)
Cut-Out Wind Speed: 20m/s (72KPH, 45MPH)
Survival Wind Speed: 49.2m/s (177KPH, 110MPH)
Rated Power: 1kw (12.5m/s, 45KPH, 28MPH)
Rated Motor Speed: 1000rpm
Maximum Power: 2kw (20m/s, 72KPH, 45MPH)
Output Voltage: 48V DC
Braking System: Regenerative electromagnetic braking system
Recommended System: Off-grid: deep cycle lead acid battery, 420Ah or more
