Description
Part Number: SC320D
The ideal controller to suit panels producing up to 20A, often found in caravans. The sophisticated remote control provides total user control and advanced operation and allows the user to set a tailored charging profile and monitor battery and charging status.
FEATURES
Multi-chemistrySet the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings
L.E.D status indicators
Displays quick reference to charge and battery status
Manual load control
Allows user to switch the DC load on/off from the controller itself
Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available
Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge
SPECIFICATIONS |
---|
INPUT | 12 or 24V |
MAX INPUT | 50V DC, 20A |
MAX CHARGE/LOAD | 20A |
MAX PANEL SIZE | 240W (12V)
|
LOAD SWITCHING | Negative |
BATTERY | 12V or 24V |
CHARGE CONTROL | 4 Stage Charging 12V 24V Bulk/ Gel 14.2V 28.4V Absorption: AGM 14.4V 28.8V Wet 14.6V 29.2V Equalisation: Gel: – – AGM: 14.6V 29.2V Wet: 14.8V 29.6V Float: 13.8V 27.6V |
LVD DISCONNECT | 12V: Default 11.1V User Set 9–17V 24V: Default 22.2V User Set 18–34V |
LVD RECONNECT | 12V: Default 12.6V User Set 9–17V 24V: Default 25.2V User Set 18–34V |
STANDBY CURRE | 23.4mA |
APPROVAL | EMC |
OPTIONAL ACCESSORIES:SC3TMP External temperature sensor probe

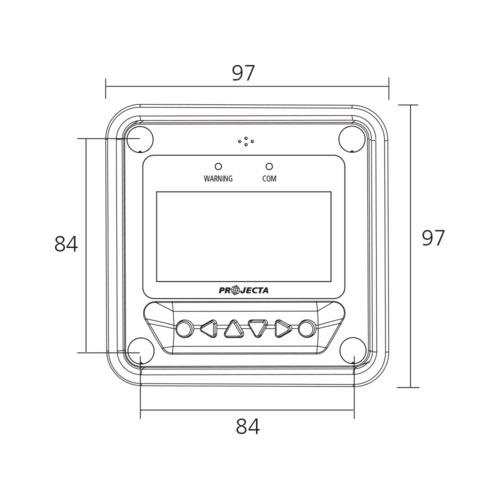

REPLACEMENT PARTS:SC320 Solar Charge Controller onlySC300D Remote Control only
