Description
Part Number: 91704BL

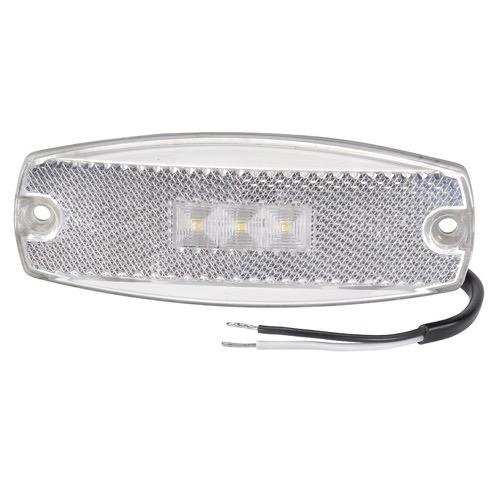

These ultra slim modern L.E.D markers can be flush mounted with a standard 13mm (1/2ā) hole required for cable entry. The lamps have a total thickness of just 9.5mm and incorporate āEā and ADR approved retro reflectors that negate the need for extra reflectors if fitted in accordance with ADR 13 installation requirements.
They are well suited to refrigerated transport where the maximum width of the vehicle is crucial and are ideal for applications like buses and caravans where they better integrate with the vehicles profile. Model 17 lamps all feature multi-voltage circuitry, hard-wired cable and virtually unbreakable polycarbonate lenses. All lamps have an integrated foam gasket to seal the lamps cable entry and ensure a secure and neat installation.
Specifications

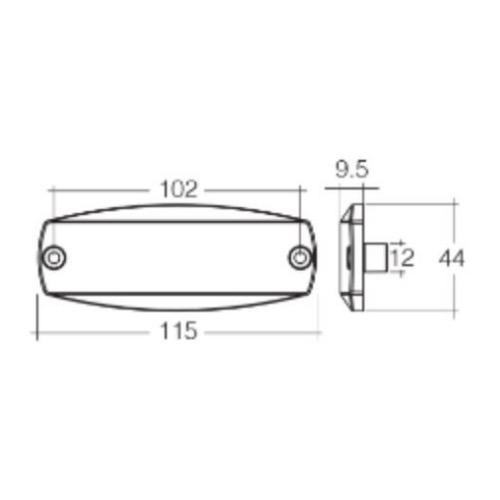

Input Voltage Range: 9-33 VoltCurrent Draw: 0.10ALEDs: Rated to 100,000 hours of L.E.LP Rating: IP66 and IP68Size: 102 x 44mmCandela Rating: 39ADR: 47/00 IB-E9-02.6272, 49/00 A-E9-02.6272A low profile surface mounted lamp with gasket and hard-wired cableSheathed cable and gasket In-built retro reflector
