Description
These compact space saving headlamps have been popular in the Australian bus and coach industry for many years. Made to be inbuilt either in a joint assembly or used independently with a fabricated body panel to suit, the 90mm lamps provide a high quality of light utilising H7 Halogen or L.E.D technology.
Due to the compact size of the units, the low beam lamps traditionally use a projector lens that can tightly control the light output to ensure maximum light is delivered where it’s needed. That same projector lens when combined with High Powered L.E.Ds delivers a light output superior both in quality and volume to a lamp many times its size.
Halogen Current Draw: 4.2A at 12V (low beam)
L.E.D Current Draw: 1.8A at 9-33V (low beam)

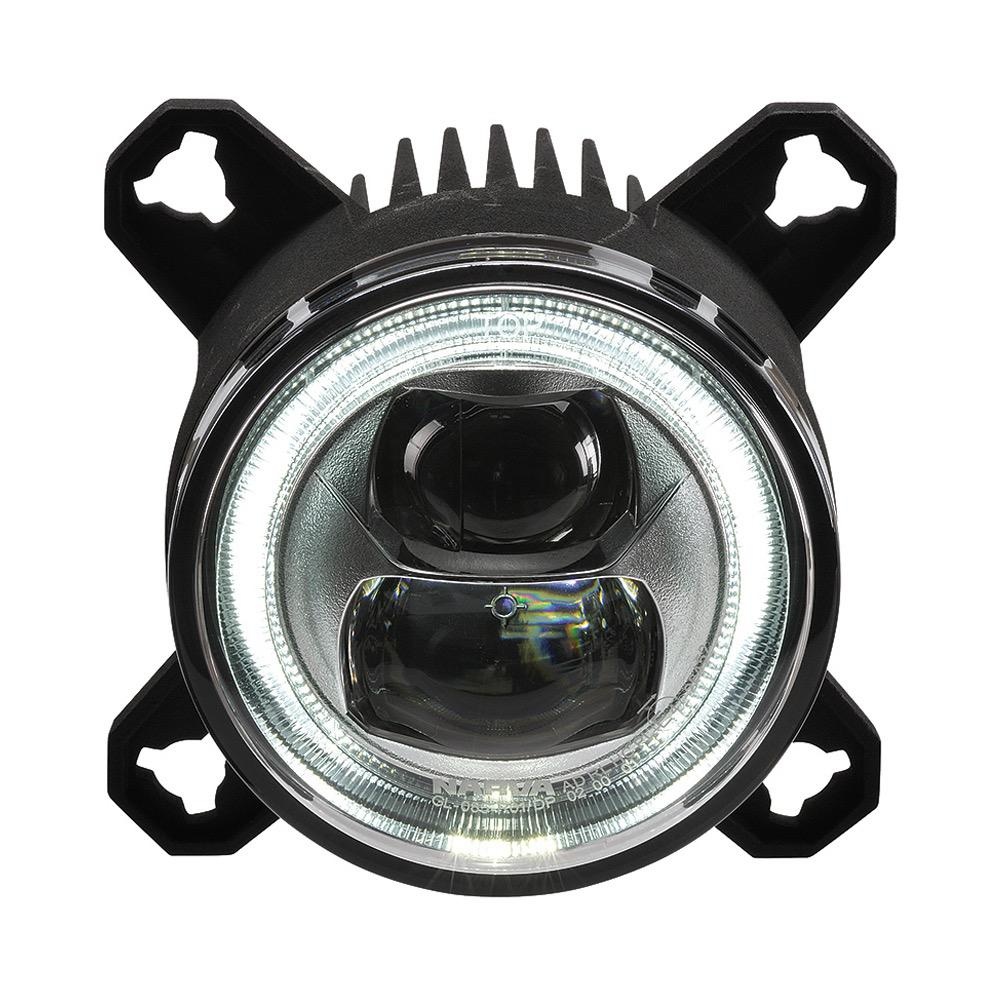

Delivering superior performance and visibility, this premium low beam headlamp is ideal for OE fitment to modern trucks and buses. Including a built-in daytime running/position light for unique styling and convenience in one lamp
Current Draw: Low Beam: 1.8A at 12V, 0.9A at 24V,
DRL: 1.0A at 12V, 0.5A at 24V,
Position: 0.1A at 12V, 0.1A at 24V
Features:
ADR 46/00 E4-112R01/ 08-26452 -00
ADR 76/00 E4-87R00/ 20-26452 -00
ADR 49/00 E4-7R02/27-26452-00
