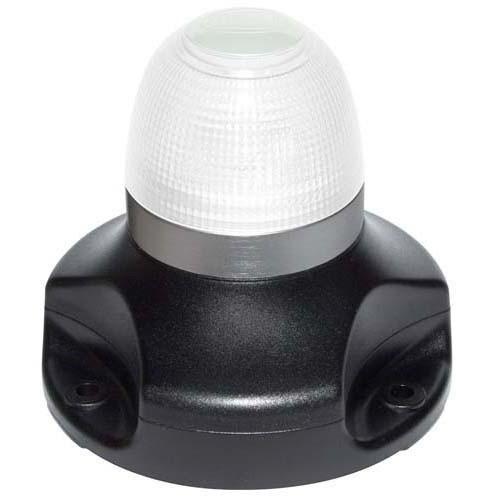

Hella 9-33V DC Multivolt LED 360 Degree Multi-flash Signal Lamp - Surfae Mount - White
Hella 9-33V DC Multivolt LED 360 Degree Multi-flash Signal Lamp - Surfae Mount - White

Hella

9-33V DC Multivolt LED 360 Degree Multi-flash Signal Lamp - Surfae Mount - White

Part Number: 98091100

Currently Out of Stock

Description

Part Number: 98091100

Multi-purpose signal lamps with robust housings, 10 programmable flash modes and the ability to be synchronised to flash alternately or in unison.

Each lamp is a completely sealed unit. Proven design, precision engineering and the use of high impact acrylic materials ensure superior resistance to water, impact, UV and wear and tear.

Advanced Multivolt™ circuitry provides reliable illumination across a range of DC inputs from 9-33 volts even during low battery voltages and voltage drop over long cable runs.

Hella marine 360° Multi-flash Signal Lamps have had part number changes, please refer to the table below to reference the part number and the legacy part number it replaces.

SPECIFICATIONS

Material DescriptionUltra heavy duty Grilamid® lens
CablePre-wired with 2.5m of multi core cable
Operating VoltageMultivoltTM 9-33V DC
Voltage ProtectionSpike protected to +500 volts
Power Consumption<5W (<0.42A@12V / <0.021A@24V (Continuously on) Less in flash modes
Degree of ProtectionIP 67 - Completely sealed
Weight150g (including cable)
ApprovalsCE
Manufactured inNew Zealand


Flashing Options

Steady stateLamp operates as a continuous ON signal
Independent flashLamp operates from an external flashing system
Flash stateLamp operates in the flash mode preselected by the user
Blitz stateLamp operates in a burst of quad flashes (pattern 4)
The blitz mode overrides the other operating modes and is triggered by switching the blue cable to negative (-).
