Description
Part Number: HDBC20
With plenty of power, engine start function and the ability to charge 6, 12 or 24V batteries, it is perfectly suited to mechanical workshops and auto electricians.
FEATURES

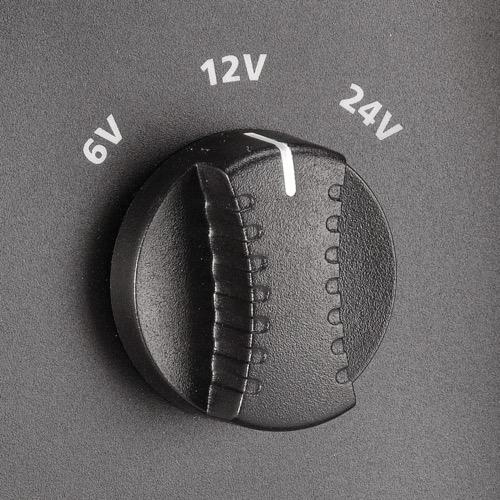

Multi-Voltage Operation
Adjustable to suit 6, 12 or 24 Volt operation

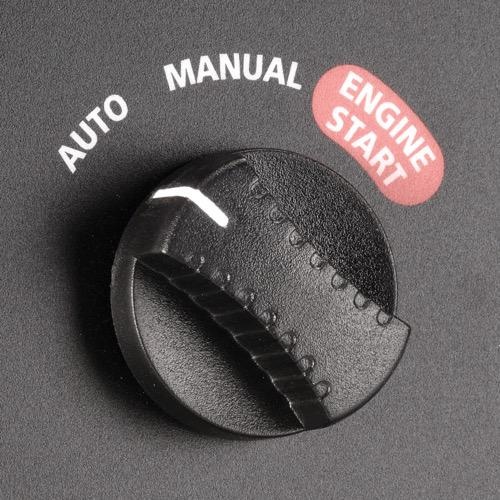

Automatic Or Manual
Charging options keep the operator in control
0–14 Hour Timer
Automatically turns charger off at set time
Engine Start Function
Starts vehicle with a flat battery after a controlled 5 minute charge (subject to battery condition)
L.E.D Display
Displays Volt and Amp readings for accurate charge status
| SPECIFICATIONS |
|---|
| TYPE | 2 Stage Automatic & Manual |
| INPUT | 240V, 50Hz, 324W |
| OUTPUT | 12.0A at 6.0V
12.0A at 12.0V
7.7A at 26.0V |
| ENGINE START | 5 cycles 5 min on, 5 min off
6V 12V 24V
50A at 3.6V 50A at 7.2V 25A at 14.4V |
| CHARGE CONTROL | 6V 12V 24V
Cut out: 7.1V 14.2V 28.4V
Cut in: 6.7V 13.4V 26.8V
Start: 0.0V 0.0V 0.0V
|
| APPROVALS | Electrical Safety, EMC |
| L.E.D CHARGE INDICATION |
| RED LIGHT FLASHING | Overload |
| SECOND RED LIGHT ON | Power on |
SECOND RED LIGHT
FLASHING
| Reverse connection |
| AMBER LIGHT ON | Charging |
| GREEN LIGHT ON | Fully charged |
| L.E.D SCREEN | Voltage/Current |
| BATTERY CHARGE TIMES |
|---|
| HDBC20 | VOLTAGE | BATTERY SIZE | CHARGE
TIME |
| AUTOMOTIVE | 6, 12, 24V | 450–1200CCA | 6–15 hrs |
| MARINE | 6, 12, 24V | 600–1400MCA | 6–15 hrs |
