Description

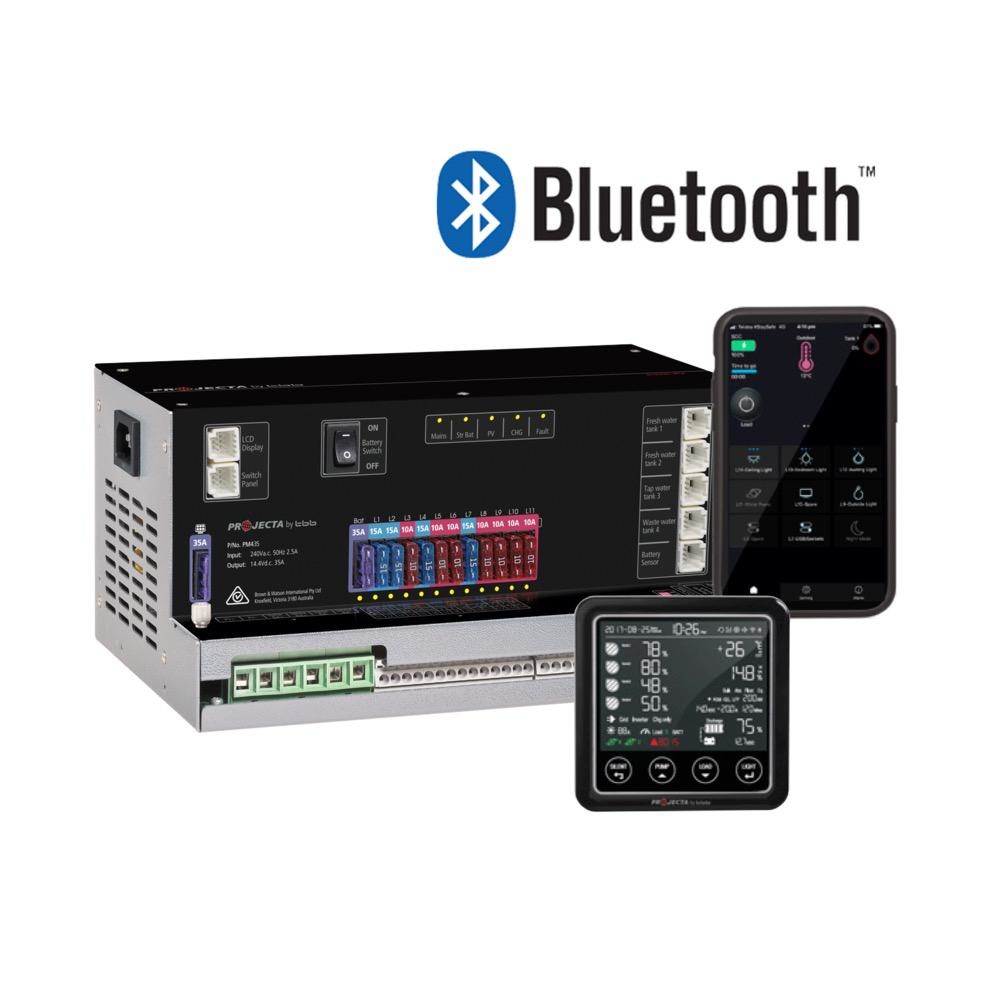

Projecta is pleased to announce the addition of PM435-BT to its award-winning INTELLI-RV range of power management systems. In response to popular demand from manufacturers, the new model offers the functionality of Projecta’s flagship PM400 system, without the central and bedroom light switch panels included, allowing manufacturers to utilize their own switch hardware instead. This presents a cost-saving over the PM400 for installers who do not need these switches included in their kit.
Like the PM400, PM435-BT includes 11 fused outputs featuring WAGO terminals, a full MPPT 30A solar controller, 30A (12V) 5 stage charging, 100A DC VSR, and 35A power supply. The PM435-BT retains the Bluetooth compatible LCD screen of the PM400, which offers information on battery/solar charging (Volts, Amps, SOC, time remaining), up to 4 water tank level inputs with pump control, a load switch, and night/silent mode for quiet operation.
Using Bluetooth and the INTELLI-RV smartphone app, users can also monitor this information, rename outputs and turn them on and off (stereo, water pump, USB sockets, lights, etc.) from the convenience of their phone. The app includes a light dimming mode for setting ideal mood lighting.
BLUETOOTH FIRMWARE UPDATING
All INTELLI-RV Bluetooth models, including those already in service, now offer firmware updating via the smartphone app. Models that currently offer this include the PM300-BT, PM435-BT and PM400. This innovative new feature ensures your INTELLI-RV is compatible with the latest upgrades and app updates.
COMPONENT LIST
- PM435 - 12V 30A Charger & 35 Amp Power Supply, 30A MPPT Solar Controller, Dimmable Lights
- PMLCD-BT - LCD Display with Bluetooth to Suit PM435 & PM335
- PMLCDC - 5m Cable to Suit LCD Screen
- PM4Y - CY Connection to Suit PM4SW10C & PM4TS
- PM4SW10C - 4.5m Cable to Suit 10 Position Switch Panel (PM4SW10)
- PM4TS - Temperature Sensor w/ 5m Cable to Suit PM400
- PMBS - Battery Sensor with 3m of Cable
- PMAC - AC Power Cord, 1.5m
PM435 WIRING UNIT DIMENSIONS - 266mm (L) x 165mm (W) x 129mm (H)
SPECIFICATIONS - 12V 30A Charger
- 35A Power Supply
- 30A MPPT Solar
- 100A DC VSR
- 11 Fused Outputs
- LCD/Bluetooth® Control
- Remote Switch Panels
FEATURES: - New PM435-BT offers a cost-saving on PM400 by allowing manufacturers to use their own switch hardware
- Smartphone app and remote LCD screen provide advanced overview and control of lighting and electrical system, charging and water pumps
- Can now update INTELLI-RV firmware via Bluetooth (PM300-BT, PM400 & PM435-BT models only).
