Description
Part Number: IM1000-24
The perfect inverter to run the comforts of home when on long and demanding road trips.
FEATURES & SPECS
Battery cable
1100mm 16mm² battery cable
Twin power sockets
AS/NZS approved 240V sockets. Inverter designed to Australian standard AS4763

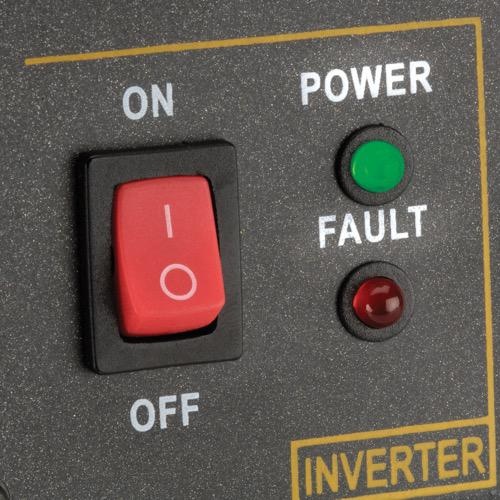

L.E.D indicators
Power and fault lights with audible alarm if problem is detected
Efficient design
Temperature controlled automatic cooling fan
Mounting flange
Convenient and robust mounting points
SPECIFICATIONS
|
|---|
| INPUT | 24VDC, 60A Max |
| NO LOAD CURRENT DRAW | 0.4A |
| OUTPUT | 230/240VAC, 50Hz (Modified Sine) |
| OUTPUT POWER | 1000W Continuous (2000W Peak) |
| INVERTER CLASSIFICATION | Equipotentially Bonded (EPB)
|
| EFFICIENCY | 85–90% |
| LOW BATTERY ALARM | 21.0 Volt |
| SHUTDOWN | 20.0 Volt (±0.2V) |
| COOLING FAN | Automatic temperature controlled |
| THERMAL SHUTDOWN | 65°C (±5°C) |
| FUSE | 6 x 10A |
| IDEAL BATTERY SIZE | 40–130Ah |
| MINIMUM BATTERY SIZE | 40Ah, 350CCA |
| RUN TIME WITH 1000W ON 40Ah BATTERY | 15 minutes |
| RUN TIME WITH 100W GLOBE ON 40Ah BATTERY | 6 hours |
| WARNING ALARM | LED & Audible alarm indicates a fault |
| APPROVALS | Electrical Safety, EMC |
