Projecta

12V Power Management Board

Part Number: ICB3500

Currently Out of Stock

$ --.--
$--.--

Please choose options before continuing.

Description

Part Number: ICB3500

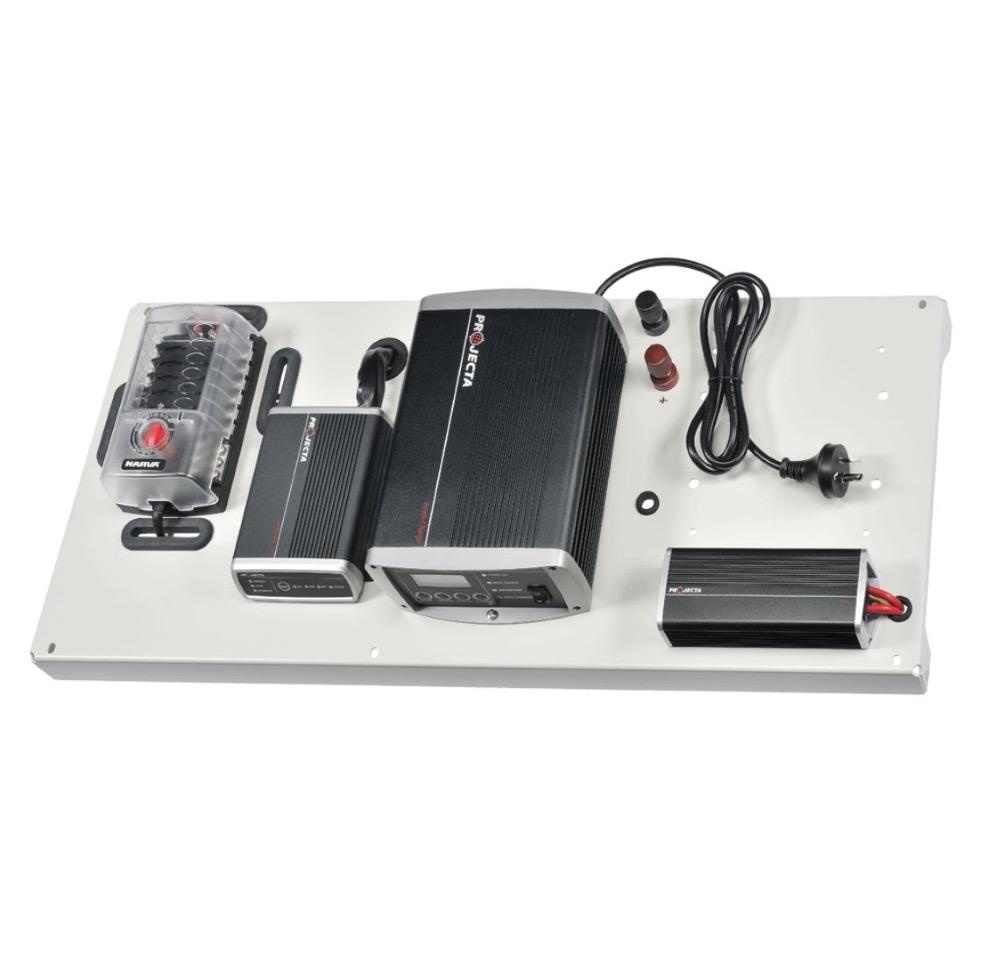

Utilising the latest range of premium ‘Intelli’ power management equipment, these 25 Amp and 35 Amp power boards are a sophisticated and complete system that is ideal for caravan and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.

FEATURES & SPECS:

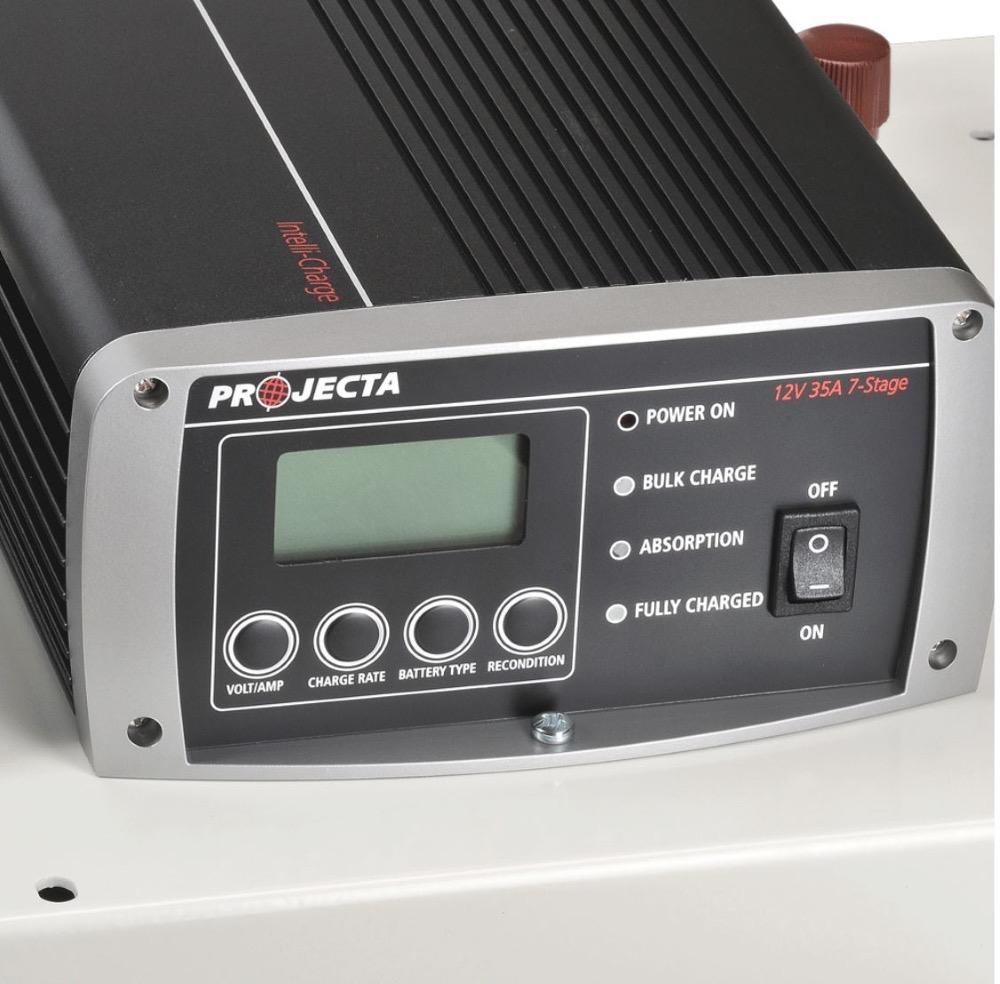

7 STAGE CHARGER
A sophisticated automatic charger that features multichemistry selection and adjustable output to match your battery type.

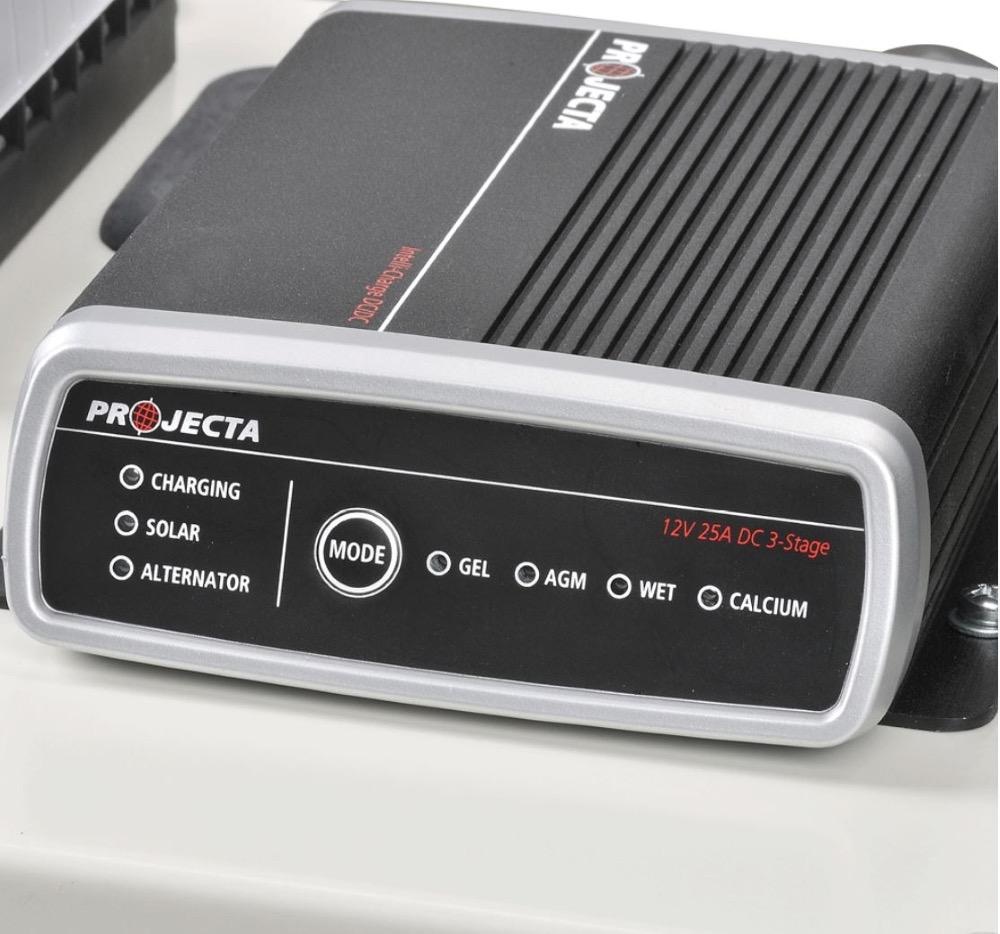

DC/SOLAR CHARGER
Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge.

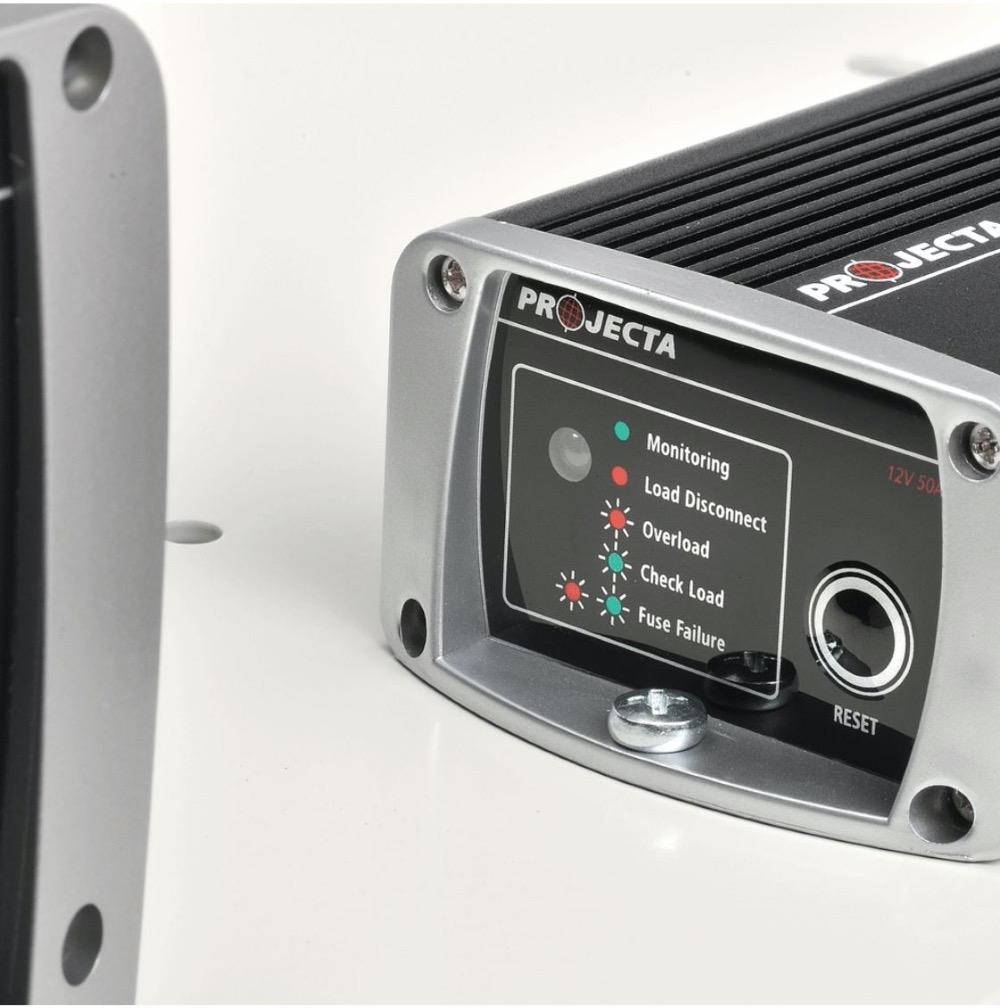

LOW VOLTAGE DISCONNECT
A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge.

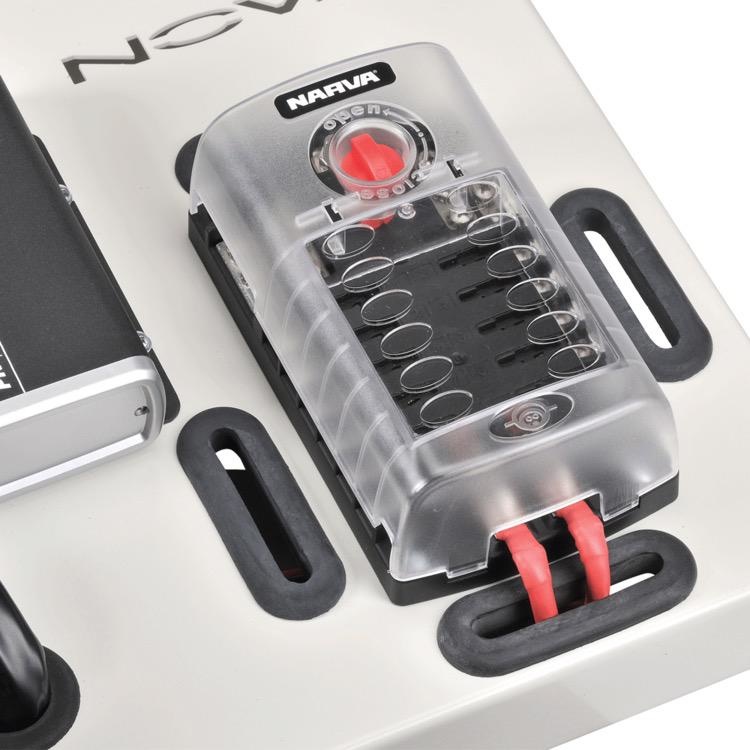

FUSE DISTRIBUTION BOX
A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs.

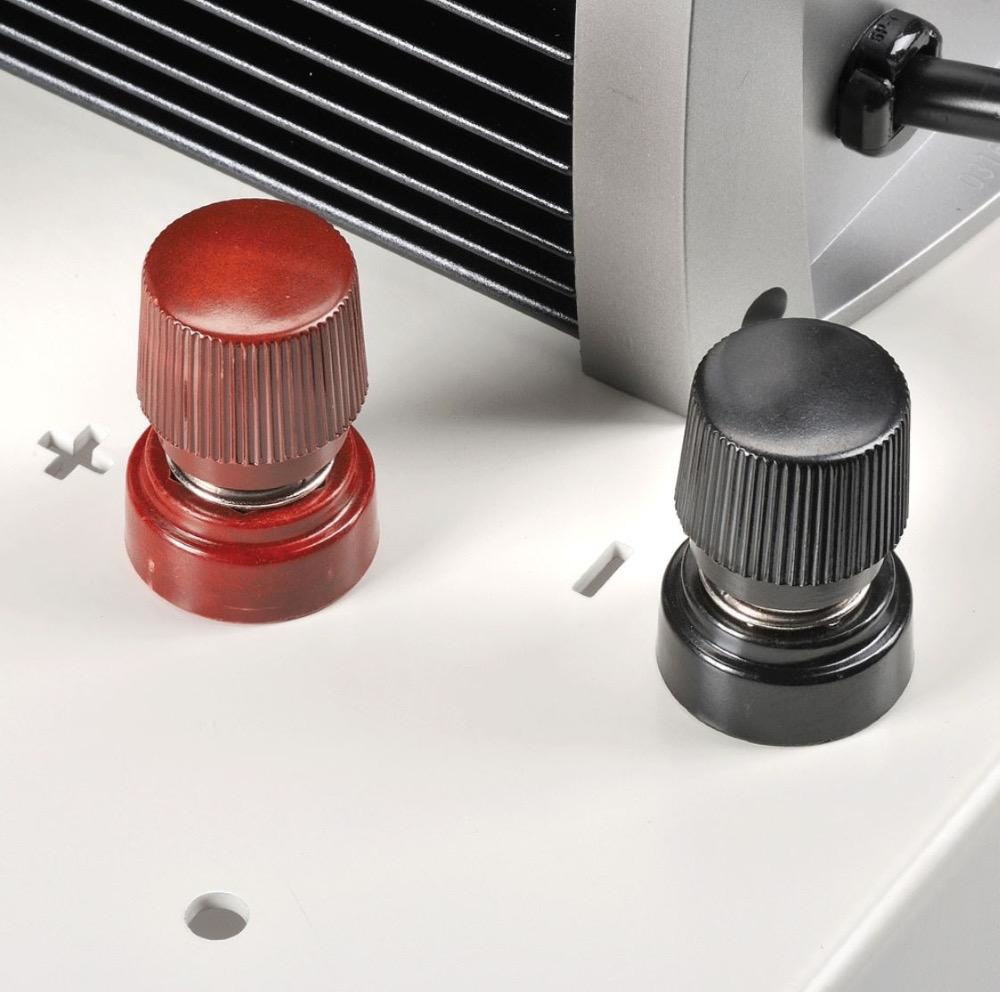

DIRECT BATTERY CONNECTION
Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries (P/No. INVPOSTS).

SPECIFICATIONS

PART NO. ICB2500 ICB3500
240V CHARGING
CHARGER PART No. IC2500 IC3500
CHARGE TYPE 7 Stage Automatic
INPUT 240VAC, 50Hz, 792W 240VAC, 50Hz, 570W
OUTPUT 12V
OUTPUT CURRENT 2,6,12,25A 2,8,16,35A
BATTERIES SUPPORTED Gel, AGM, Wet & Calcium
12V DC/SOLAR CHARGING
PART NO. IDC25
CHARGE TYPE 3 Stage
ALTERNATOR INPUT VOLTAGE 9-32Vdc
MAX SOLAR INPUT 23Vdc, 385W
BATTERIES SUPPORTED Gel, AGM, Wet & Calcium
ALTERNATOR TYPE Smart & Conventional
LVD CONTROL
PART No. LVD30 LVD50
INPUT VOLTAGE 10-16V
OUTPUT CURRENT 30A 50A
DISCONNECT VOLTAGE SET POINTS 10.0V, 10.5V, 11.0V, 12.0V
RECONNECT VOLTAGE 13.0V
FUSE BLOCK
LOAD 30A per circuit, 120A per block at 12V
CIRCUITS 12-Way ATS Blade Fuses



REPLACEMENT PARTS:
INVPOSTS 8mm inverter posts positive & negative
