Description
Part Number: ICB2500

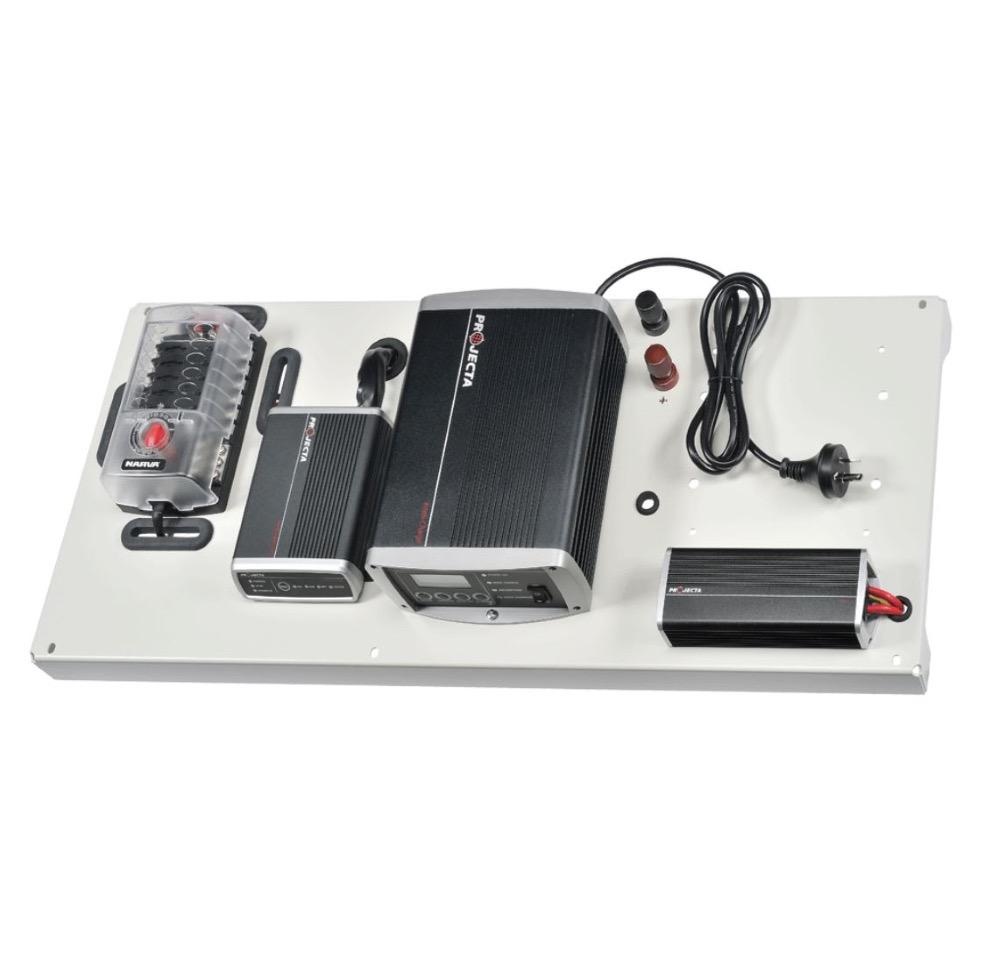

Utilising the latest range of premium ‘Intelli’ power management equipment, these 25 Amp and 35 Amp power boards are a sophisticated and complete system that is ideal for caravan and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.
FEATURES & SPECS:
7 STAGE CHARGER
A sophisticated automatic charger that features multichemistry selection and adjustable output to match your battery type.
DC/SOLAR CHARGER
Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge.
LOW VOLTAGE DISCONNECT
A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge.
FUSE DISTRIBUTION BOX
A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs.
DIRECT BATTERY CONNECTION
Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries (P/No. INVPOSTS).
SPECIFICATIONS
|
|---|
| PART NO. | ICB2500 | ICB3500 |
| 240V CHARGING |
| CHARGER PART No. | IC2500 | IC3500 |
| CHARGE TYPE | 7 Stage Automatic |
| INPUT | 240VAC, 50Hz, 792W | 240VAC, 50Hz, 570W |
| OUTPUT | 12V |
| OUTPUT CURRENT | 2,6,12,25A | 2,8,16,35A |
| BATTERIES SUPPORTED | Gel, AGM, Wet & Calcium |
| 12V DC/SOLAR CHARGING |
| PART NO. | IDC25 |
| CHARGE TYPE | 3 Stage |
| ALTERNATOR INPUT VOLTAGE | 9-32Vdc |
| MAX SOLAR INPUT | 23Vdc, 385W |
| BATTERIES SUPPORTED | Gel, AGM, Wet & Calcium |
| ALTERNATOR TYPE | Smart & Conventional |
| LVD CONTROL |
| PART No. | LVD30 | LVD50 |
| INPUT VOLTAGE | 10-16V |
| OUTPUT CURRENT | 30A | 50A |
| DISCONNECT VOLTAGE SET POINTS | 10.0V, 10.5V, 11.0V, 12.0V |
| RECONNECT VOLTAGE | 13.0V |
| FUSE BLOCK |
| LOAD | 30A per circuit, 120A per block at 12V |
| CIRCUITS | 12-Way ATS Blade Fuses |
REPLACEMENT PARTS:INVPOSTS 8mm inverter posts positive & negative
